Light Switches
-

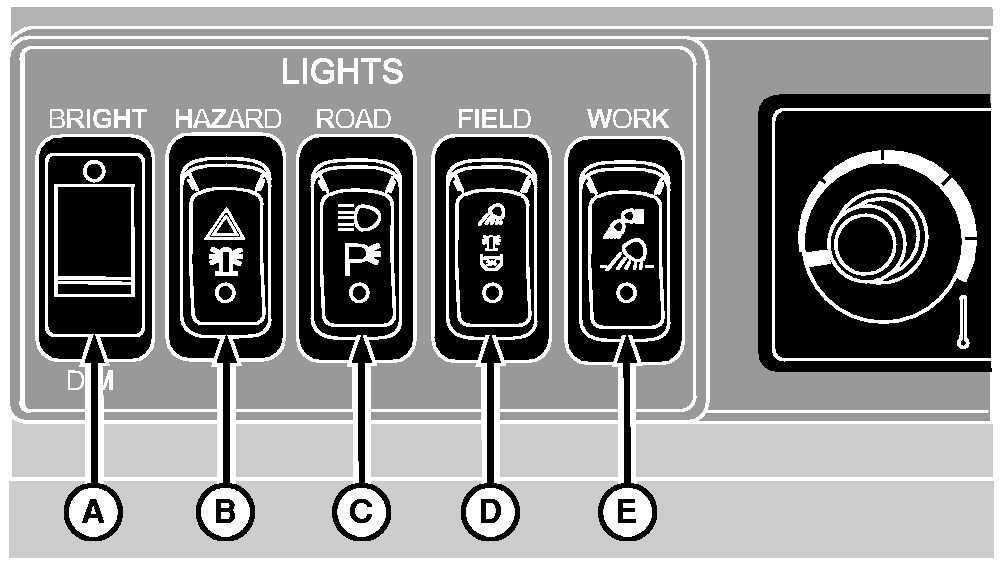

(A) Dimmer, for all cab interior lights
-
(B) Beacon lights, hazard warning lights
-
(C) Road transport: Beacon lights, instrument panel lights, clearance lights and road lights
-
(C) Field operation: Grain tank and header lights (field position), auxiliary field lights, unloading auger light and side finder lights
-
(E) Rear lights: Rear discharge lights
NOTE:

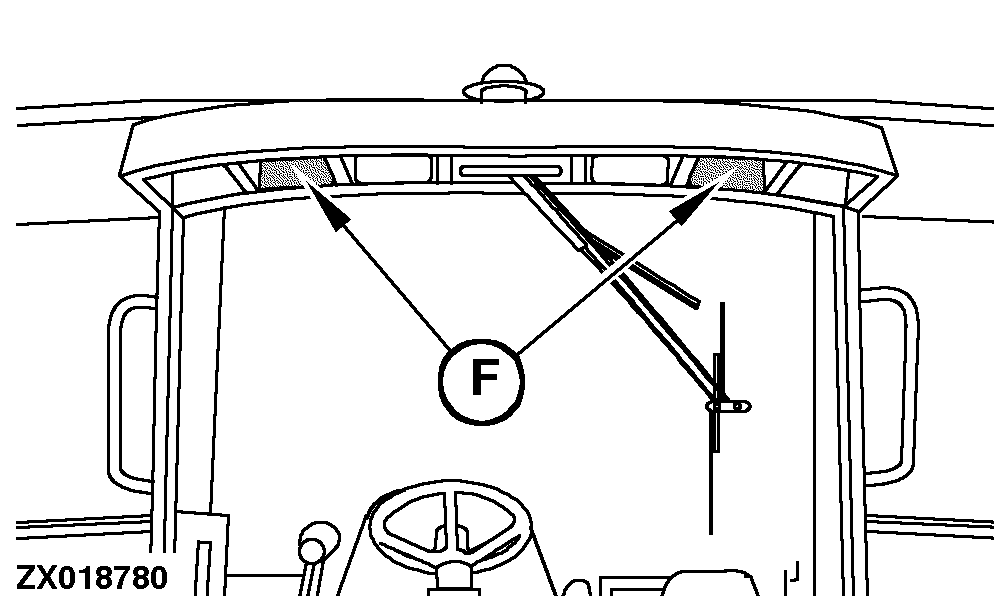

The combine is equipped with exit lighting. Two headlights (F) will remain on for 90 seconds after the lights are turned off, operator leaves the seat and the key is removed.
If dimmer switch is in lowest or highest setting, combine exiting lighting will not be activated.
A-Dimmer for cab interior lights
B-Hazard warning lights
C-Road Lights
D-Field lights
E-Rear lights
F-Headlights
|
|
