Transporting Combine on Public Roads

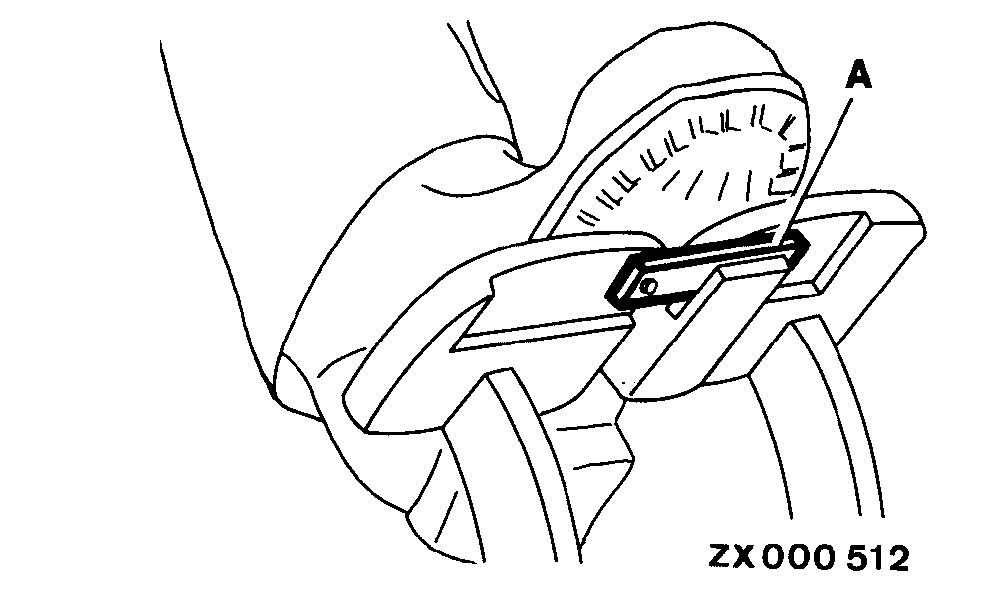

causym CAUTION: For safety reasons, always couple brake pedals by means of pedal coupler (A) when driving on public roads. This ensures that the brakes are actuated together.

Remove header . Move feeder house to transport position.

Empty grain tank .

Swing unloading auger in.


A-Brake pedal coupler

ZX000512

ZX08994,0000136 -19-09DEC02-1/3

Pivot and secure the access ladder in full forward position to reduce combine width.

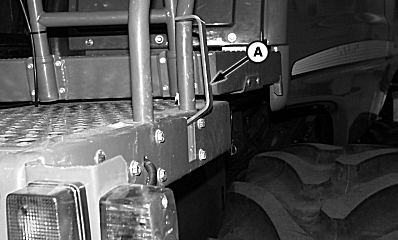

Use lever (A) to unlock ladder and swing to the full forward position.

Switch on lights , if necessary.

Lower radio antenna .

Close grain tank cover .

Lower Hillmaster combines to transport position.


A-Lever

H67583

ZX08994,0000136 -19-09DEC02-2/3

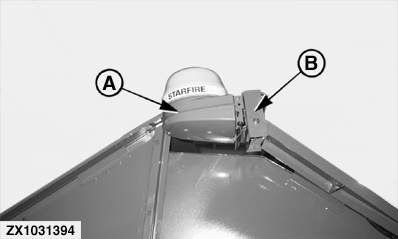

On combines with a grain tank capacity of 7500 L, 8000 L, or 9500 L, remove GPS receiver .

ZX1031394
