Unloading Auger Drive Switch (Yellow)

Pressing switch (B) turns the unloading auger drive on/off. An indicator light on the switch is on when the drive is engaged.

NOTE: To engage the unloading auger drive, the unloading auger must either be swung out at least 50 % or be in the process of automatically swinging out.

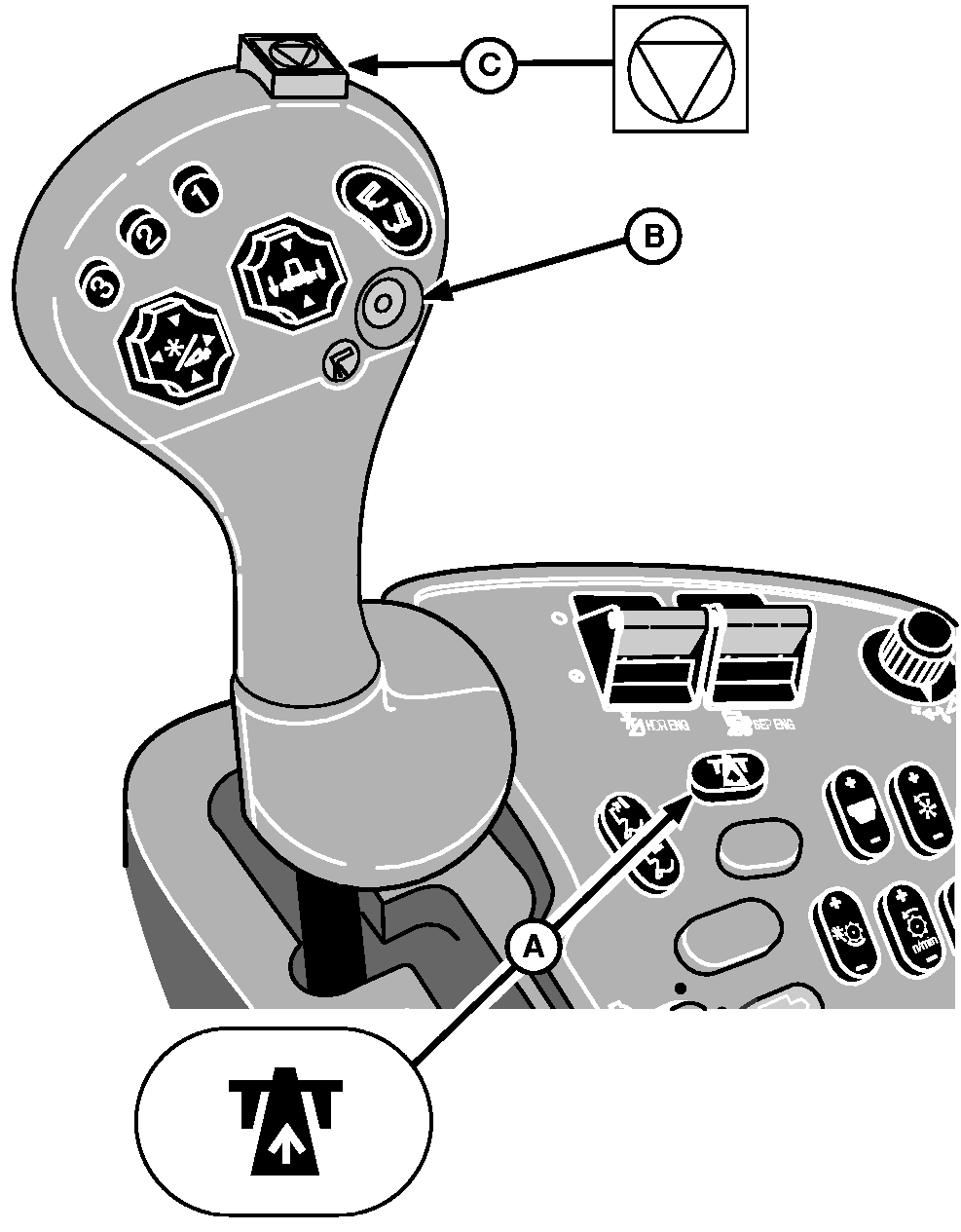

A-Road transport disconnect switch
B-Unloading auger drive switch
C-Quick stop switch

H68441

ZX08994,0000138 -19-21MAR02-1/1
