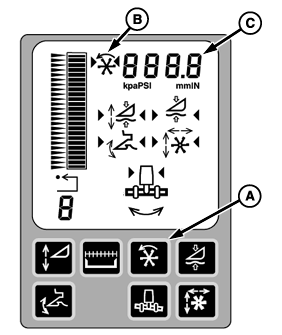

DIAL-A-SPEED™ (Optional)The DIAL-A-SPEED system controls the ratio between the reel speed and the ground speed. The system will not operate if ground speed is less than 1.2 km/h (0.75 mph). The system is enabled by pressing switch (A) on the corner post display unit. The system is disabled by pressing switch (A) again. The following requirements must be met:

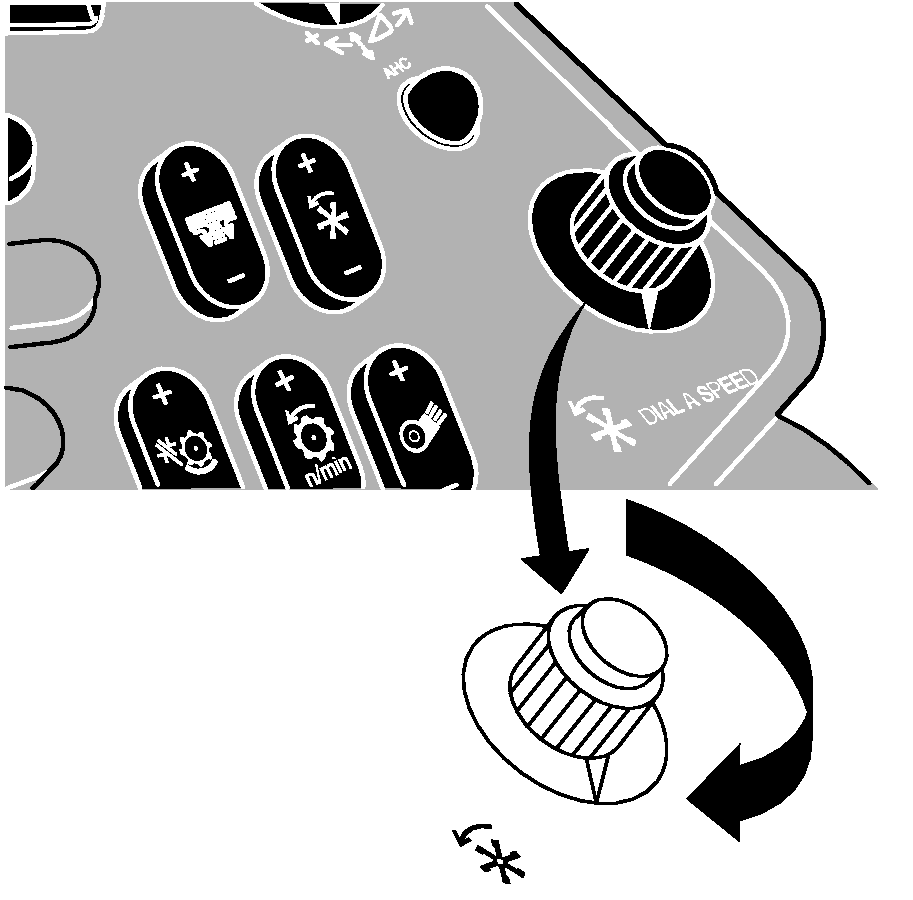

The operator activates the system by pressing one of the header activation buttons on the multi-function lever. Arrowheads on each side of the icon indicate that the system is active. Manually raising the header will deactivate the DIAL-A-SPEED system immediately if the header height control system is also active. If DIAL-A-SPEED is the only system active, raising the header for 1.5 Seconds (adjustable) will deactivate the system. Pressing any of the activation buttons will re-activate the system. Rotating the DIAL-A-SPEED knob clockwise will increase the ratio and counterclockwise will decrease the ratio. The larger the ratio number (C) selected, the faster the reel will operate with respect to combine ground speed. |
|
|
DIAL-A-SPEED is a trademark of Deere & Company | ZX08994,000013B -19-02MAY02-1/2 |
|

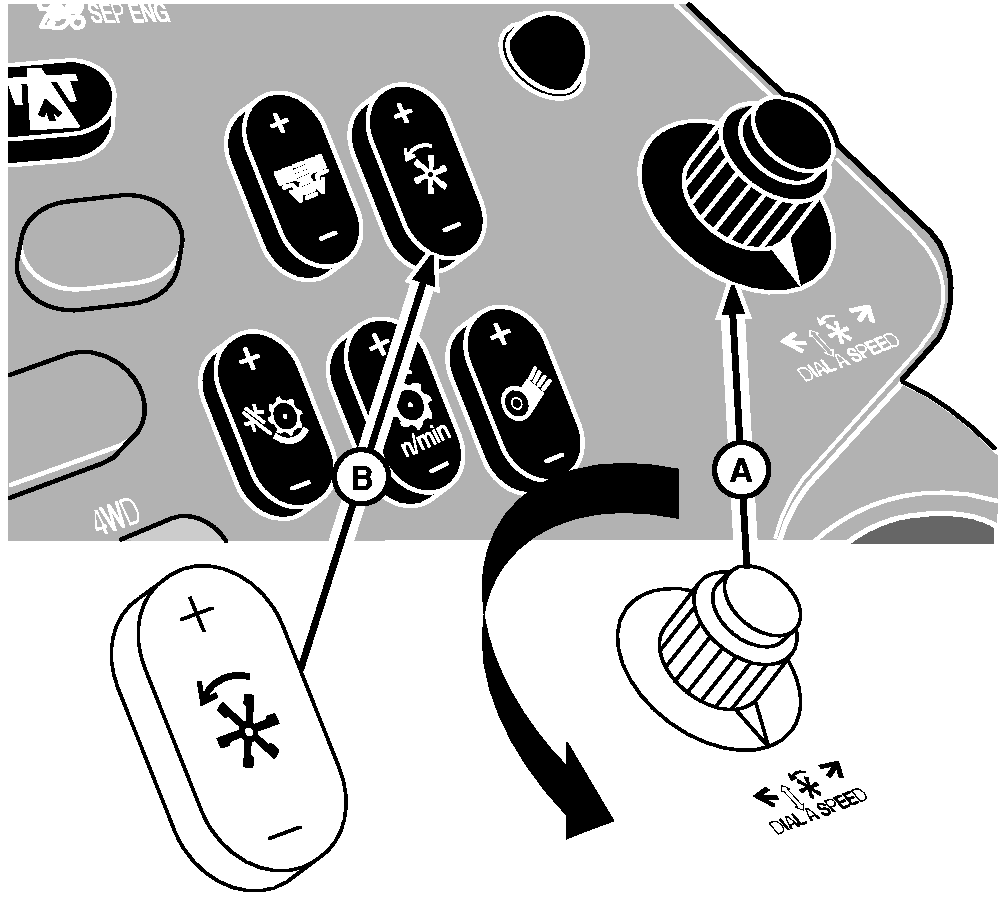

Operation with DIAL-A-SPEED: 1. Start the engine and drive forward with the separator and header engaged.2. Press the DIAL-A-SPEED button on the HEADERTRAK display. 3. Press any activation button on the multi-function lever. The reel will now speed up or slow down in relation to the ground speed. 4. Adjust knob (A) to set the desired ratio between reel speed and ground speed. Setting the minimum speed: 1. Turn the DIAL-A-SPEED knob (A) counterclockwise until the HEADERTRAK corner post display reads zero.2. Press the manual reel speed switch (B) to set the desired minimum reel speed. 3. Return the DIAL-A-SPEED knob to the prior setting and continue operating. This minimum speed is kept until the engine is shut off. |
|
