Replacing Chopper Belt

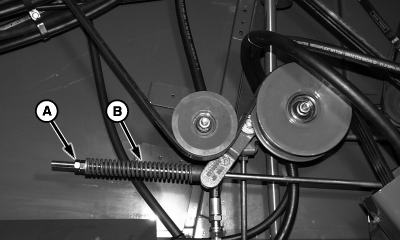

Loosen nuts (A) to relieve spring (B) tension.


A-Nuts
B-Spring

H68716

ZX08994,0000144 -19-10MAY02-1/3

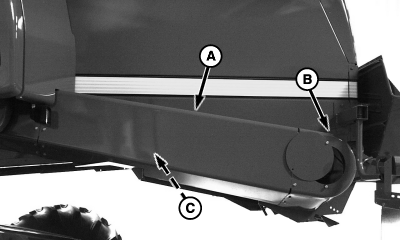

Remove shields (A and B) to replace belt (C).

Re-install shields.


A-Shield
B-Shield
C-Chopper belt

H68717

ZX08994,0000144 -19-10MAY02-2/3

Tighten nuts (A) until spring (B) is the same length as gauge.


A-Nuts
B-Spring

H68716

ZX08994,0000144 -19-10MAY02-3/3
