Adjusting Feeder House Conveyor Chain

CAUTION: Raise feeder house, lower safety stop, shut off engine, set parking brake and remove key.

Remove feeder house side shields.

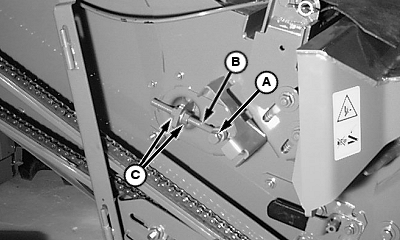

Loosen nut (A) on both sides of feeder house.

Adjust eyebolt (B) with adjustment nuts (C) on both sides of feeder house so that the third conveyor slat (seen from the front) slightly touches the feeder house bottom.

Tighten lock nut and adjustment nuts.

When adjusting eyebolt can go no further and the chain needs more tensioning, remove a chain link, see "Removing Conveyor Chain Link" in this group.

Reinstall shields.

A-Lock Nut
B-Eyebolt
C-Nuts
D-Front runner channel

ZX08994,000016D -19-25JUN02-1/1
