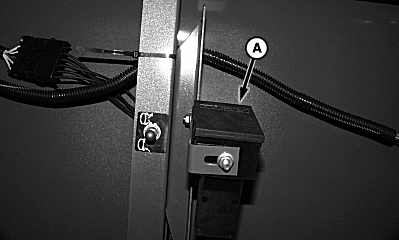

Adjusting Grain Tank 3/4 IndicatorThe 3/4 tank sensor (A) is located on the front side next to the grain tank loading auger. It turns on a blue light on the warning display panel and a buzzer until the sensor is de-activated. The blue light turns on immediately but there is a two seconds delay between the tripping of the sensor (A) and the buzzer sounding.
NOTE: Header drive must be on for the buzzer to sound. IMPORTANT: When the bracket is reversed, the bracket will then be higher than the grain tank extension. NOTE: The higher the sensor, the fuller the grain tank will be at the time the buzzer sounds. If higher grain tank fill is desired, the mounting bracket can be reversed. |
|
CAUTION:
Shut off engine, set parking brake and remove key.
ZX08994,000017A -19-13NOV02-1/1 |
