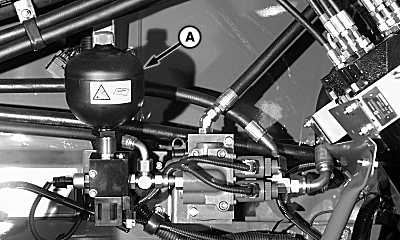

Accumulator (General Information)IMPORTANT: Every time the header is changed or the skid plates are installed/removed, have your John Deere dealer check and if necessary re-adjust the pressure charge of the lift system accumulator. The accumulator (A) is integrated into to the header lift system. It supports the HEADERTRAK system when ground pressure control is active. The accumulator has a volume of 0.7 L (0.19 U. S. gal). It is maintenance-free and cannot be repaired if damaged. |
|
ZX08994,0000197 -19-05DEC02-1/1 |
