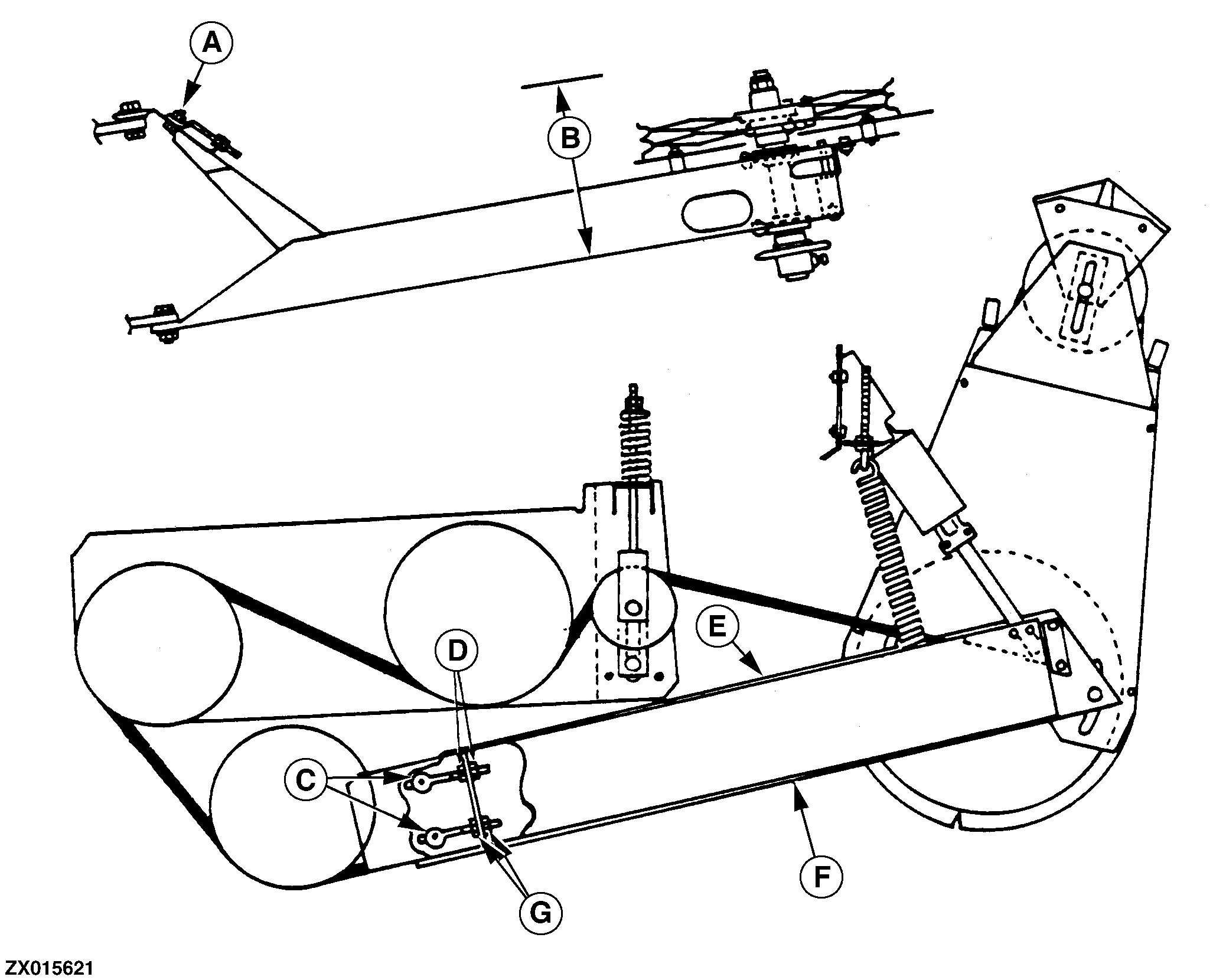

A-Nuts
B-657 mm (2.15 ft)

C-Screws
D-Adjusting nuts

E-Top of arm
F-Bottom of arm

G-Adjusting nuts

CAUTION: Stop engine and remove key.

Loosen nuts (A).

Loosen nuts (D) and adjust two bolts (C) until top of arm (E) is at a distance (B) of 657 mm (2.15 ft) from side sheet. Tighten nuts (D)

Check for 657 mm (2.15 ft) dimension (B) from bottom of arm (F) to side sheet. Adjust with nuts (G).

Adjust bolt out (toward sheave) or in (away from sheave) to move arm to equal spacing. This adjustment is a twisting action. Tighten nuts (A).

ZX,OMCTS012408 -19-09DEC02-1/1
