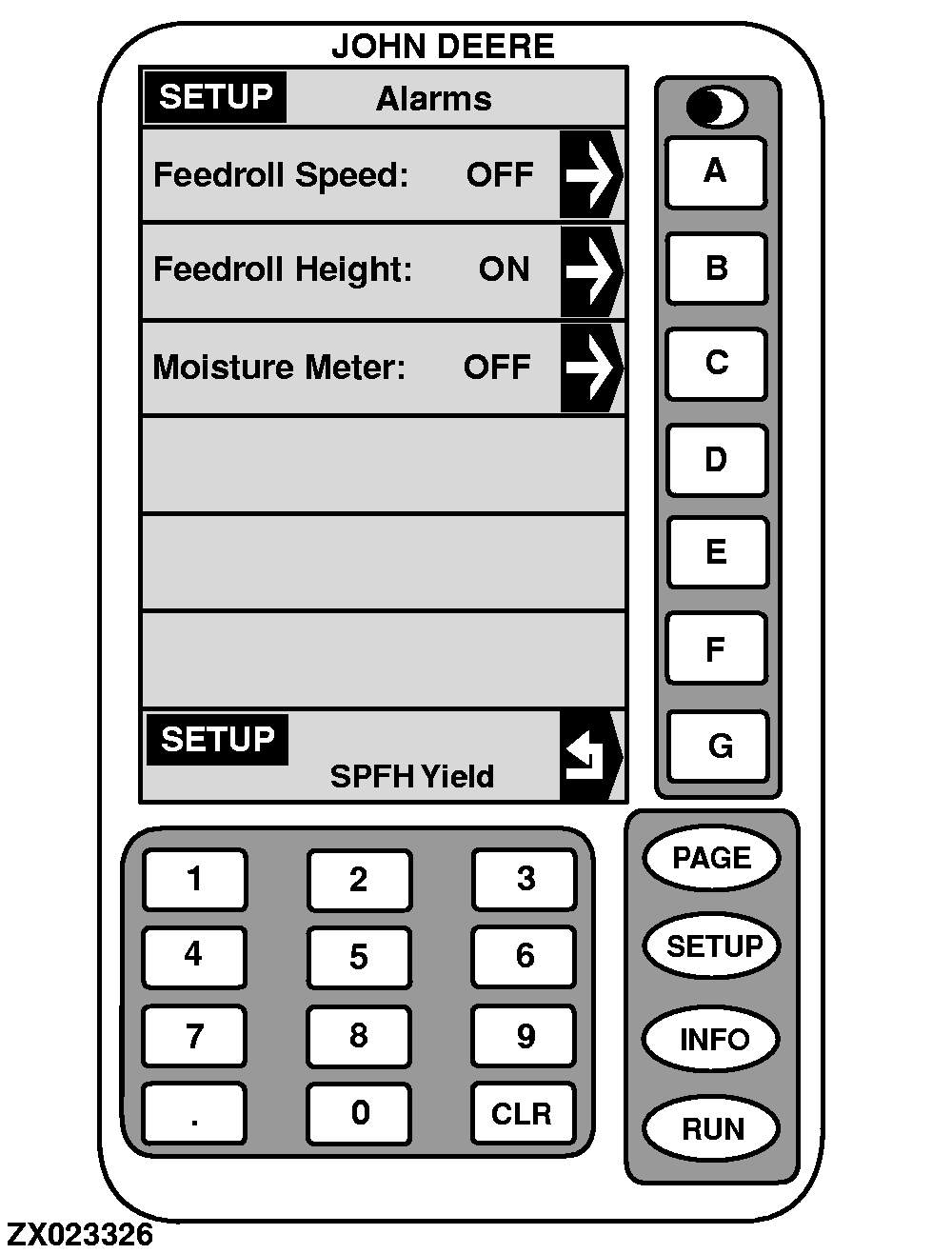

Setup-Alarms

Min./max. feed roll speed, feed roll height and moisture meter level alarms can be set up from this screen. These settings can be done while harvesting.

  • FEED ROLL SPEED

    Factory settings are:

    a. Min. level = 0 m/s (0 ft/s)
    b. Max. level = 5.5 m/s (18 ft/s)
    c. Alarm is: OFF

    NOTE: Feed roll speed can range from 0 to 5.5 m/s (0 to 18 ft/s).

    To set up feed roll speed minimum alarm level:

1. Press key A on "SETUP - Alarms". ALARM-FEED ROLL will appear.

2. Press key C on "SETUP - Alarm - Feed Roll".

3. Using numeric keypad, input desired value.

4. Press key C to ENTER this value.

5. Press key G to return to "SETUP - Alarms".

To set up feed roll speed maximum alarm level:

1. Press key A on "SETUP - Alarms". ALARM-FEED ROLL will appear.

2. Press key D on "SETUP - Alarm - Feed Roll".

3. Using numeric keypad, input desired value.

4. Press key D to ENTER this value.

5. Press key G to return to "SETUP - Alarms".

To activate feed roll speed alarms:

1. Press key A on "SETUP - Alarms". ALARM-FEED ROLL will appear.

2. Press key E on "SETUP - Alarm-Feed Roll". Display will change from OFF to ON.

ZX023326
ZX023327

OUZXMAG,0000846 -19-08JAN01-1/4

3. Press key G to return to "SETUP - Alarms".

    OUZXMAG,0000846 -19-08JAN01-2/4

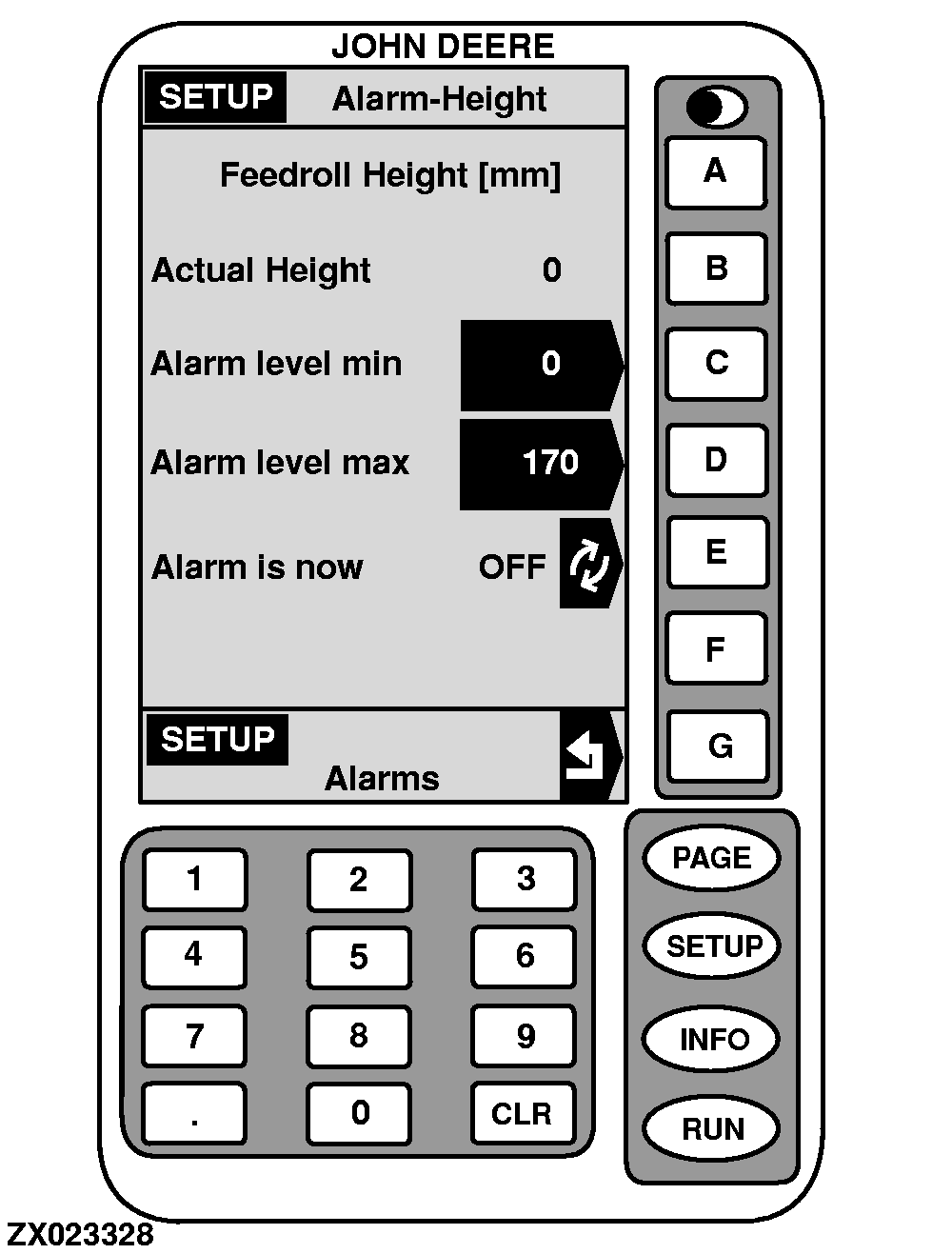

    • FEED ROLL HEIGHT

      Factory settings are:

      a. Min. level = 0 mm (0 in.)
      b. Max. level = 170 mm (6.7 in.)
      c. Alarm is: OFF

      NOTE: Feed roll height can range from 0 to 170 mm (0 to 6.7 in.).

      To set up feed roll height minimum alarm level:

      1.

      Press key B on "SETUP - Alarms". ALARM-HEIGHT will appear.

      2.

      Press key C on "SETUP - Alarm - Height".

      3.

      Using numeric keypad, input desired value.

      4.

      Press key C to ENTER this value.

      5.

      Press key G to return to "SETUP - Alarms".

      To set up feed roll height maximum alarm level:

          1.

          Press key B on "SETUP - Alarms". ALARM-HEIGHT will appear.

          2.

          Press key D on "SETUP - Alarm - Height".

          3.

          Using numeric keypad, input desired value.

          4.

          Press key D to ENTER this value.

          5.

          Press key G to return to "SETUP - Alarms".

          To activate feed roll height alarms:

                1.

                Press key B on "SETUP - Alarms". ALARM-HEIGHT will appear.

                2.

                Press key E on "SETUP - Alarm - Height". Display will change from OFF to ON.

                3.

                Press key G to return to "SETUP - Alarms".

      ZX023326
      ZX023328

    OUZXMAG,0000846 -19-08JAN01-3/4

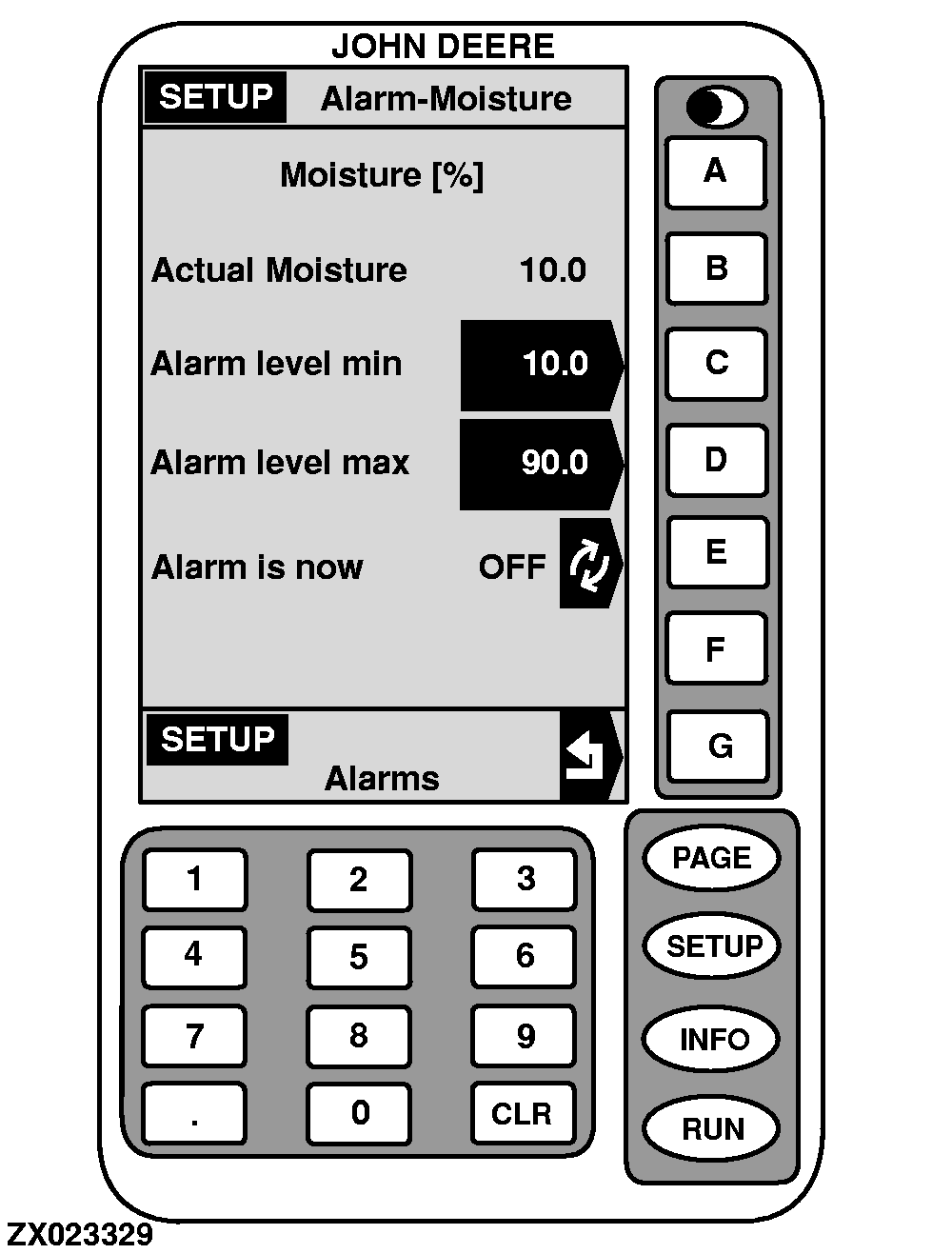

            • MOISTURE METER

              Factory settings are:

              a. Min. level = 0 %
              b. Max. level = 90 %
              c. Alarm is: OFF

              To set up moisture meter minimum alarm level:

                      1.

                      Press key C on "SETUP - Alarms". ALARM-MOISTURE will appear.

                      2.

                      Press key C on "SETUP - Alarm - Moisture".

                      3.

                      Using numeric keypad, input desired value.

                      4.

                      Press key C to ENTER this value.

                      5.

                      Press key G to return to "SETUP - Alarms".

                      To set up moisture meter maximum alarm level:

                                  1.

                                  Press key C on "SETUP - Alarms". ALARM-MOISTURE will appear.

                                  2.

                                  Press key D on "SETUP - Alarm - Moisture".

                                  3.

                                  Using numeric keypad, input desired value.

                                  4.

                                  Press key D to ENTER this value.

                                  5.

                                  Press key G to return to "SETUP - Alarms".

                                  To activate moisture meter alarms:

                                                1.

                                                Press key C on "SETUP - Alarms". ALARM-MOISTURE will appear.

                                                2.

                                                Press key E on "SETUP - Alarm - Moisture". Display will change from OFF to ON.

                                                3.

                                                Press key G to return to "SETUP - Alarms".

      ZX023326
      ZX023329

    OUZXMAG,0000846 -19-08JAN01-4/4
