Info-Load Totals (Without Printer Option)

OUZXMAG,0000851 -19-15JAN01-1/2

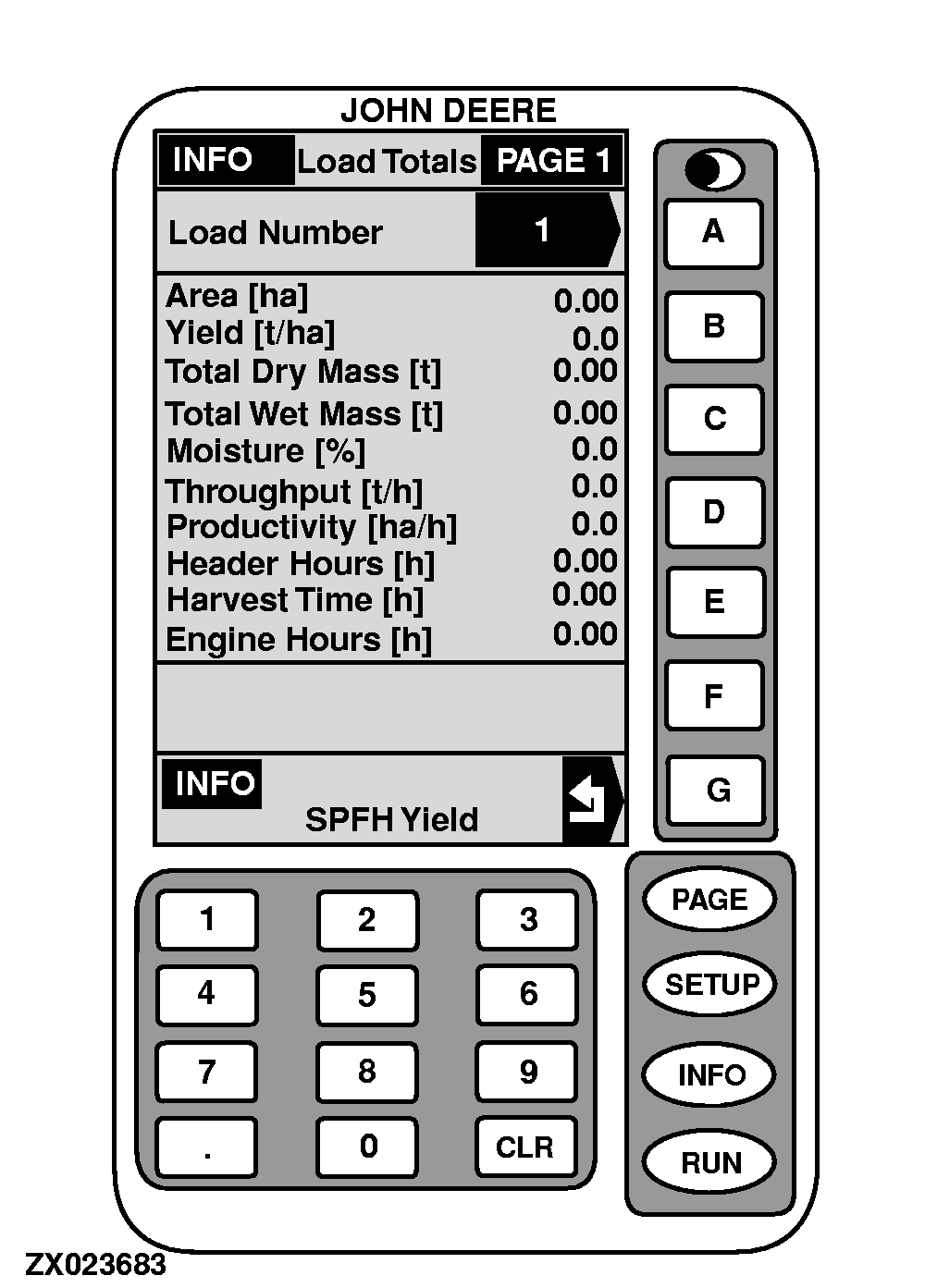

This screen displays data acquired for a particular load.

The load selected in "SETUP - Operation Data" is displayed along with all of its harvest information as shown in the sample display.

2. Press key A to select desired load number.

3. Using numeric keyboard, input desired load number.

4. Press key A to ENTER this value. All information is displayed.

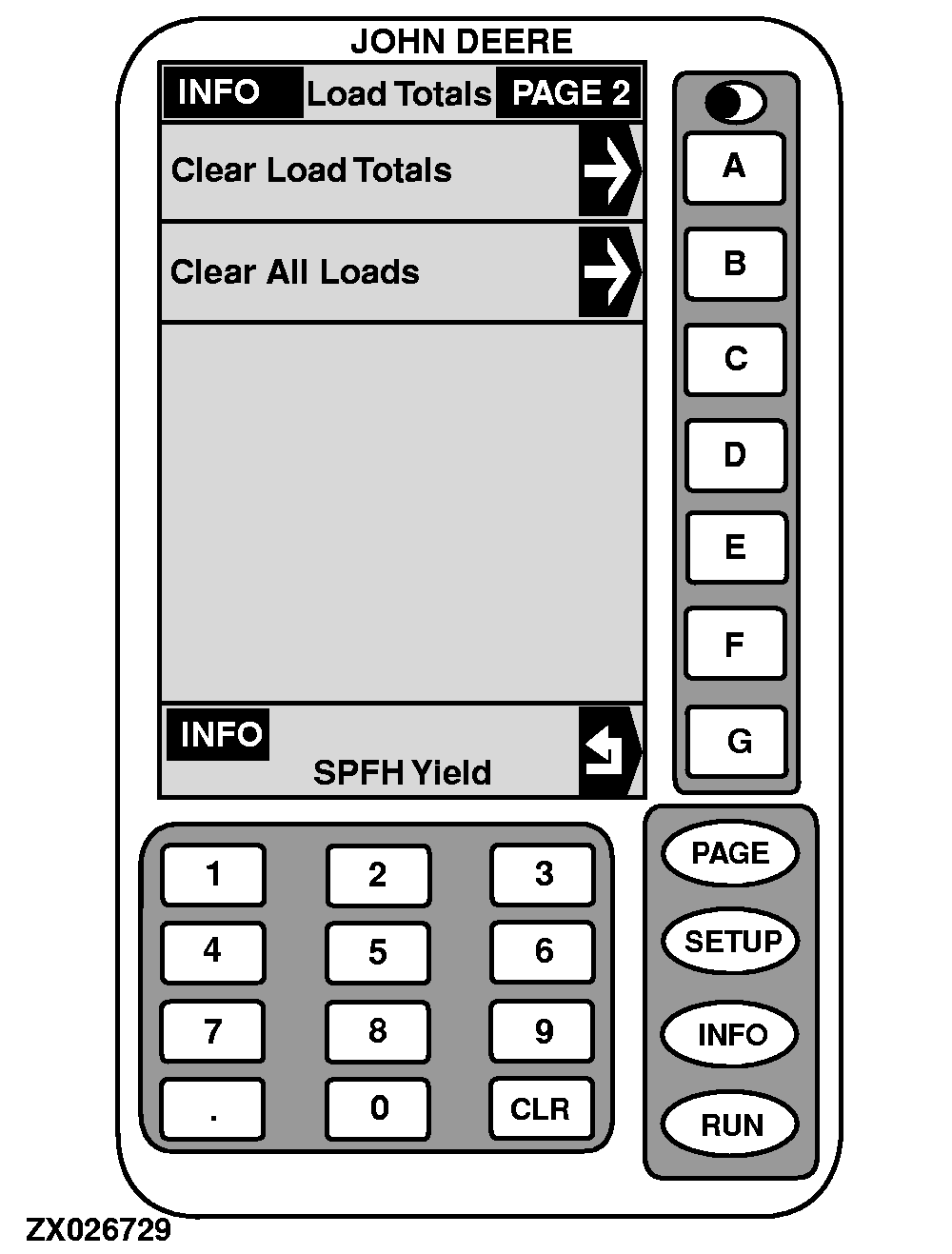

5. Press key G to return to "INFO - SPFH Yield" or press PAGE key to access INFO - Load Totals - PAGE 2 screen.

6. Press A to clear relevant load totals or press B to clear all load totals.

7. Press key G to go back to "INFO - SPFH Yield" screen.

OUZXMAG,0000851 -19-15JAN01-2/2
