Info-Mass-Flow Sensor

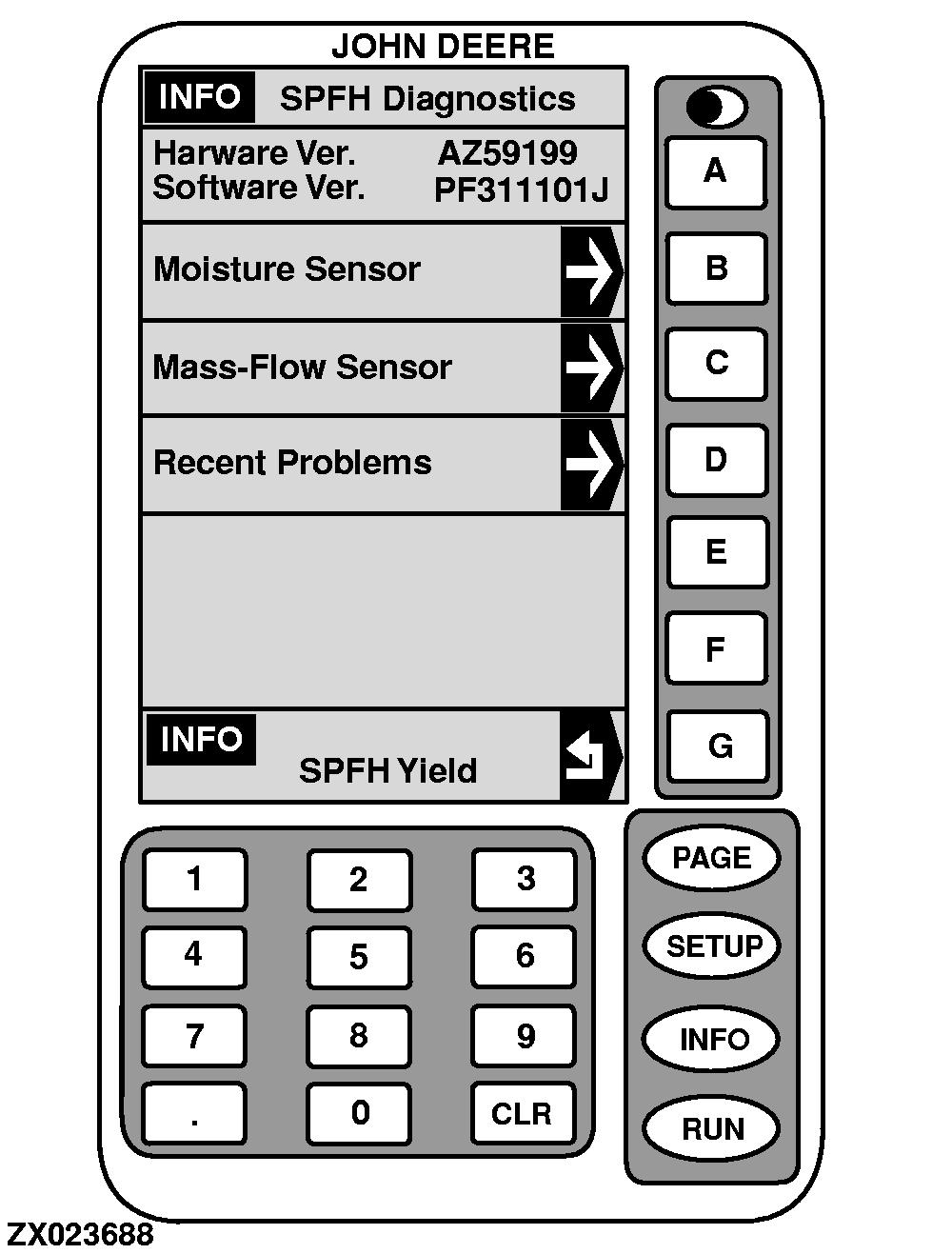

On "INFO - SPFH Diagnostic" press key
C
.

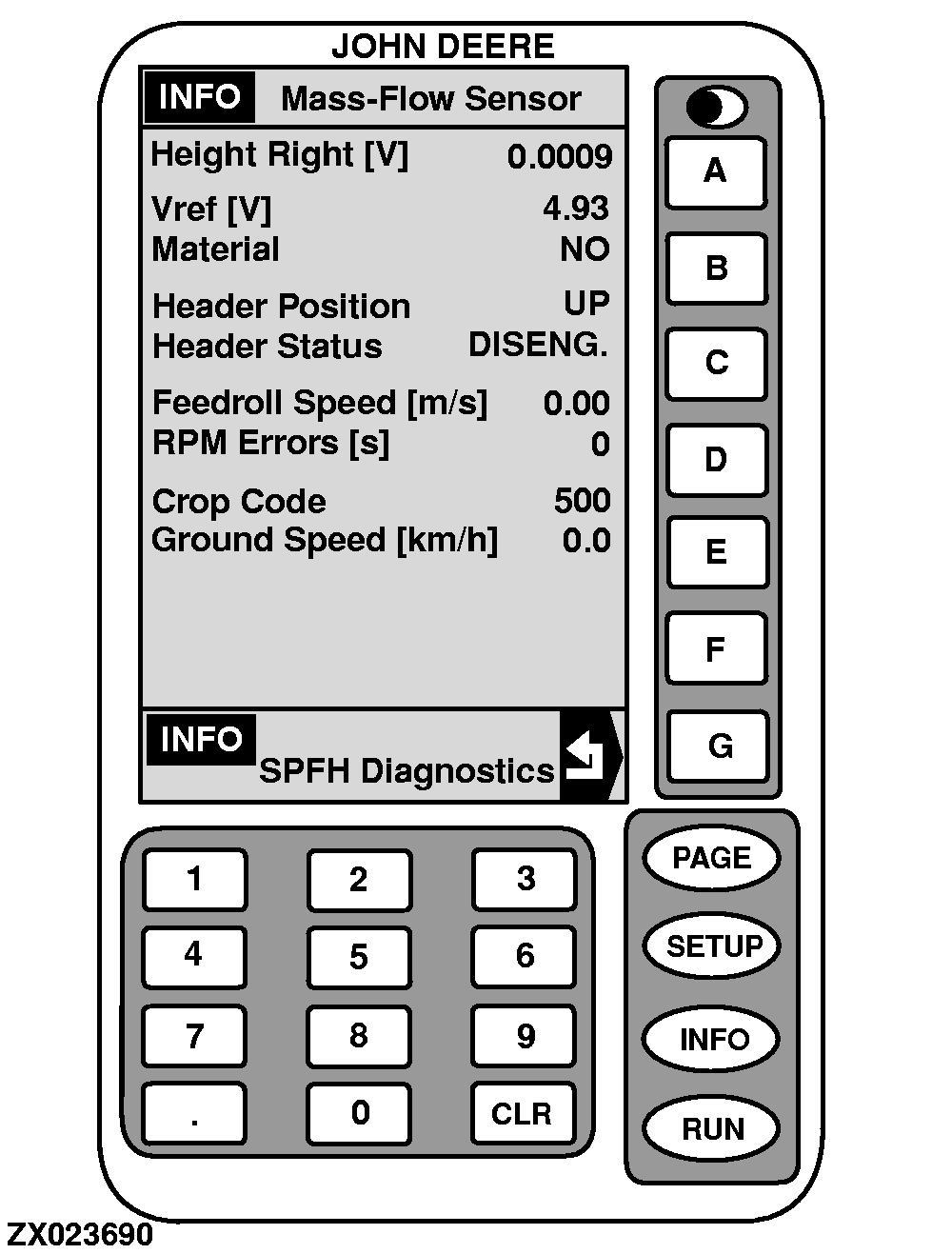

INFO - MASS-FLOW SENSOR
will appear.
This page shows detailed information about the mass-flow sensor. This information will help troubleshoot mass-flow sensor if a problem occurs.
Press key
G
to return to "INFO - Diagnostics".
-
FEED ROLL HEIGHT RIGHT
This cell is for factory use only.
-
VREF
This cell is for factory use only.
-
MATERIAL
Indicates whether material is detected or not.
-
HEADER POSITION
Indicates whether header is UP or DOWN (works only when header is ENGAGED).
-
HEADER STATUS
Indicates whether header is ENGAGED or DISENGAGED..
-
FEED ROLL SPEED
Indicates speed of feed roll in m/s.
-
RPM ERRORS
Indicates number of seconds during which feed roll speed sensor has sent an invalid speed.
-
CROP CODE
This cell is for factory use only.
-
GROUND SPEED
Indicates machine ground speed.
|
