Info (With Printer Option)

The INFO screen is used to view general information screens of data on the GreenStar yield monitor system.

To access INFO screens, press INFO key.

  • PRINTER

    Information on GreenStar forage harvester yield monitor system with printer option. Press key A to select.

  • REPROGRAM

    Information on GreenStar forage harvester yield monitor system software versions. Press key B to select.

  • SPFH YIELD

    Information on GreenStar forage harvester yield monitor system. Press key C to select.

  • PERF MONITOR

    NOTE: This function is NOT supported by the GreenStar Yield Monitor System.

  • GREENSTAR DISPLAY

    Information on GreenStar Display and for factory use only.

  • TRACKING

    NOTE: This function is NOT supported by the GreenStar Yield Monitor System.

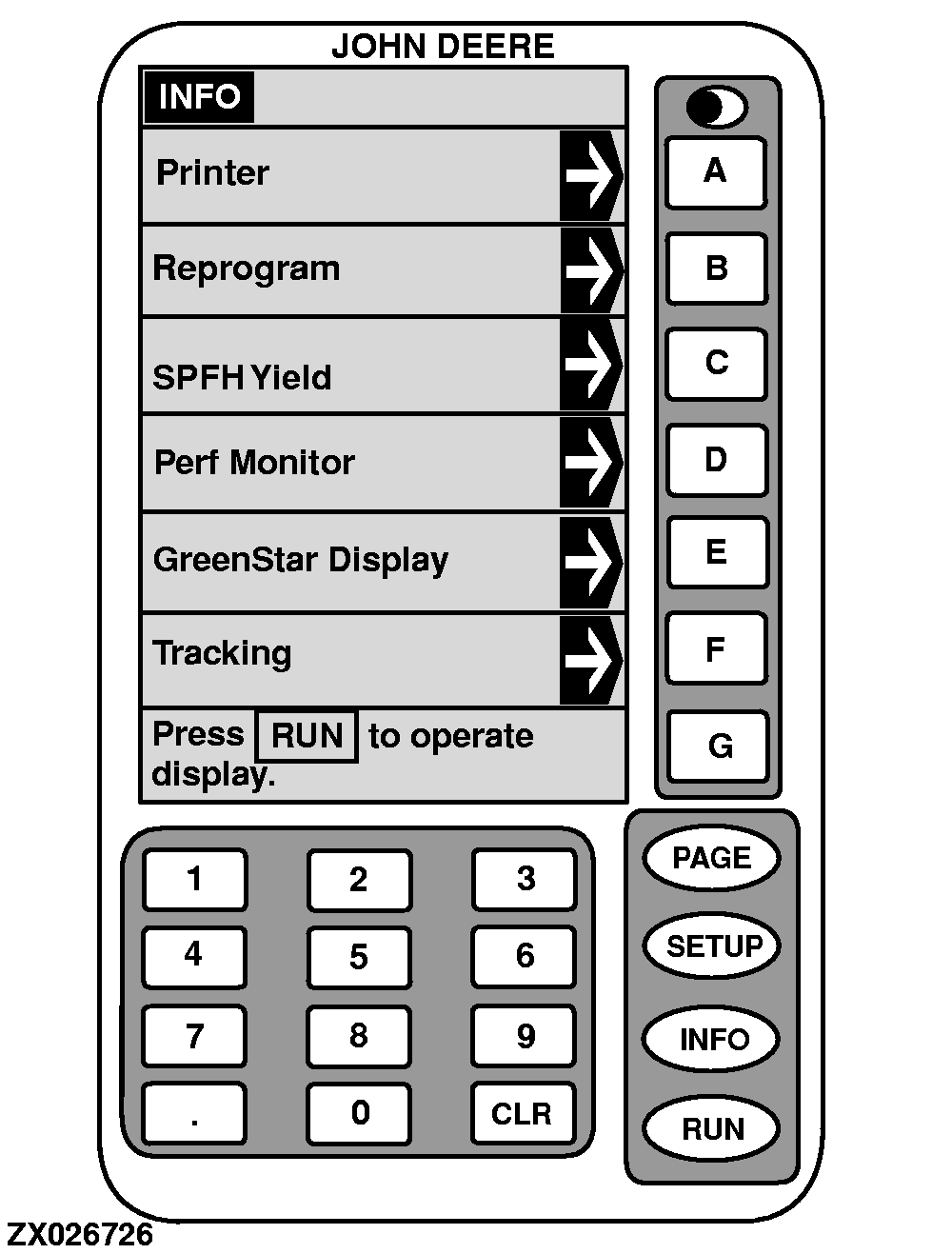

ZX026726

OUZXMAG,0001129 -19-26SEP02-1/1
