Info-Load Totals (With Printer Option)

OUZXMAG,000112B -19-16AUG01-1/2

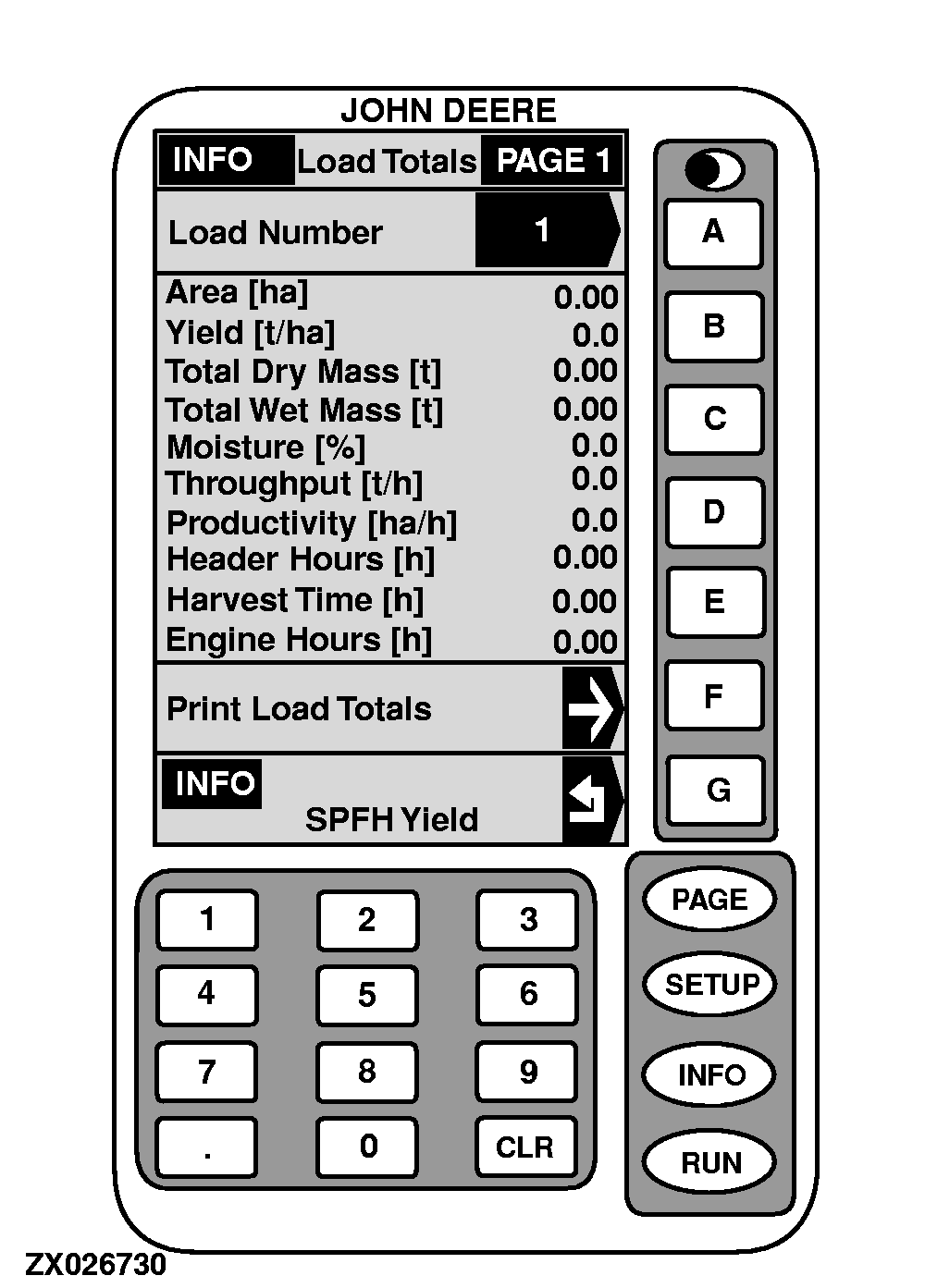

This screen displays data acquired for a particular load.

The load selected in "SETUP - Operation Data" is displayed along with all of its harvest information as shown in the sample display.

2. Press key A to select desired load number.

3. Using numeric keyboard, input desired load number.

4. Press key A to ENTER this value. All information is displayed.

If necessary, a print out of displayed load totals can be obtained by pressing key F .

NOTE: Once print out is over, successively press on ejection button to sufficiently roll out paper so that it can be torn off far below the printed area.

5. Press key G to return to "INFO - SPFH Yield" or press PAGE key to access INFO - Load Totals - PAGE 2 screen.

6. Press A to clear relevant load totals or press B to clear all load totals.

7. Press key G to return to "INFO - SPFH Yield" or press key F to clear all information of relevant load.

OUZXMAG,000112B -19-16AUG01-2/2
