Info-Crop Totals (With Printer Option)

This screen displays data acquired for a particular crop.

The crop selected in "SETUP - Operation Data" is displayed along with all of its harvest information as shown in the sample display.

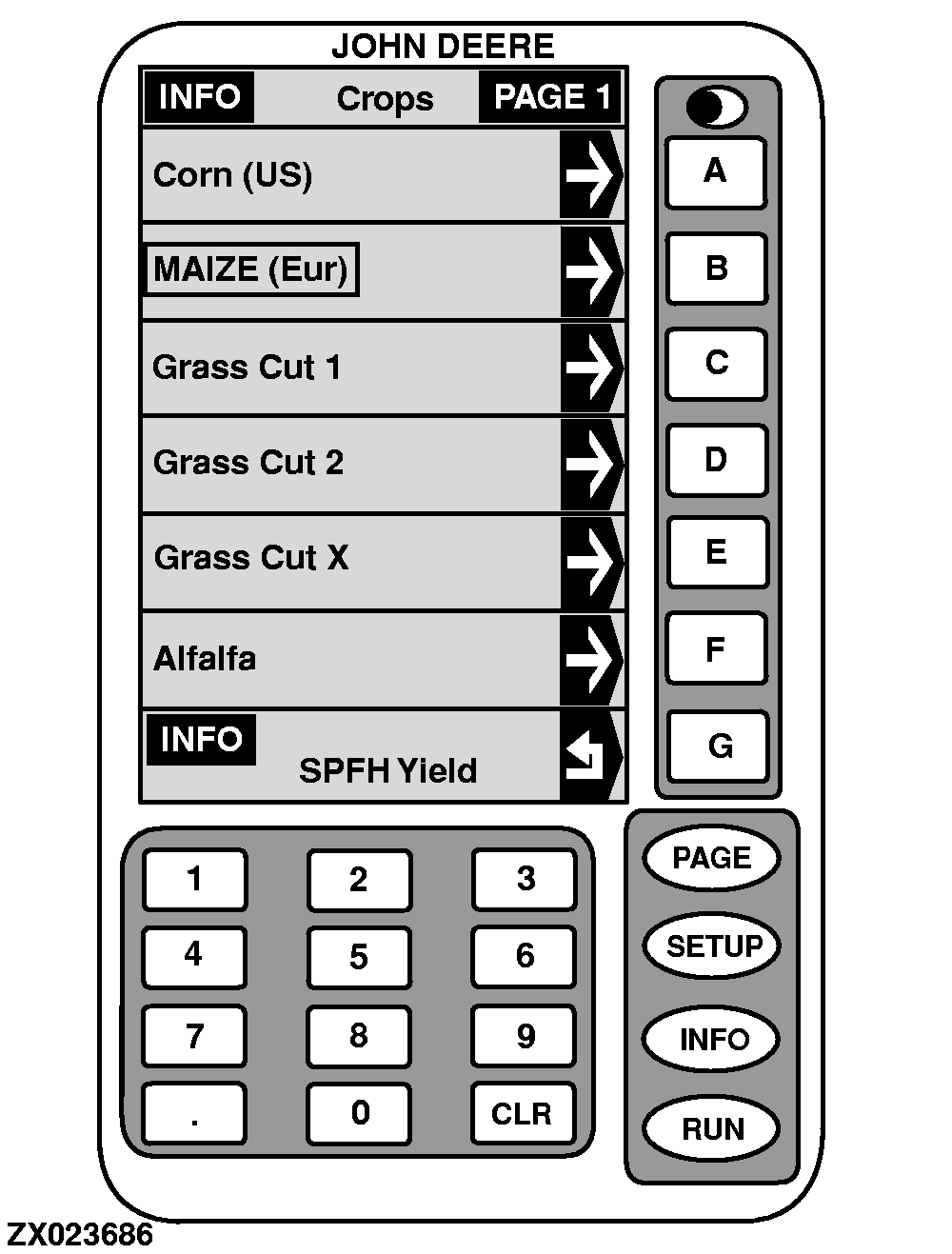

2. Press key A to select crop. INFO - Crops - PAGE 1 will appear.

3. Press key next to the desired crop (active crop is is shown in a box as illustrated) to display.

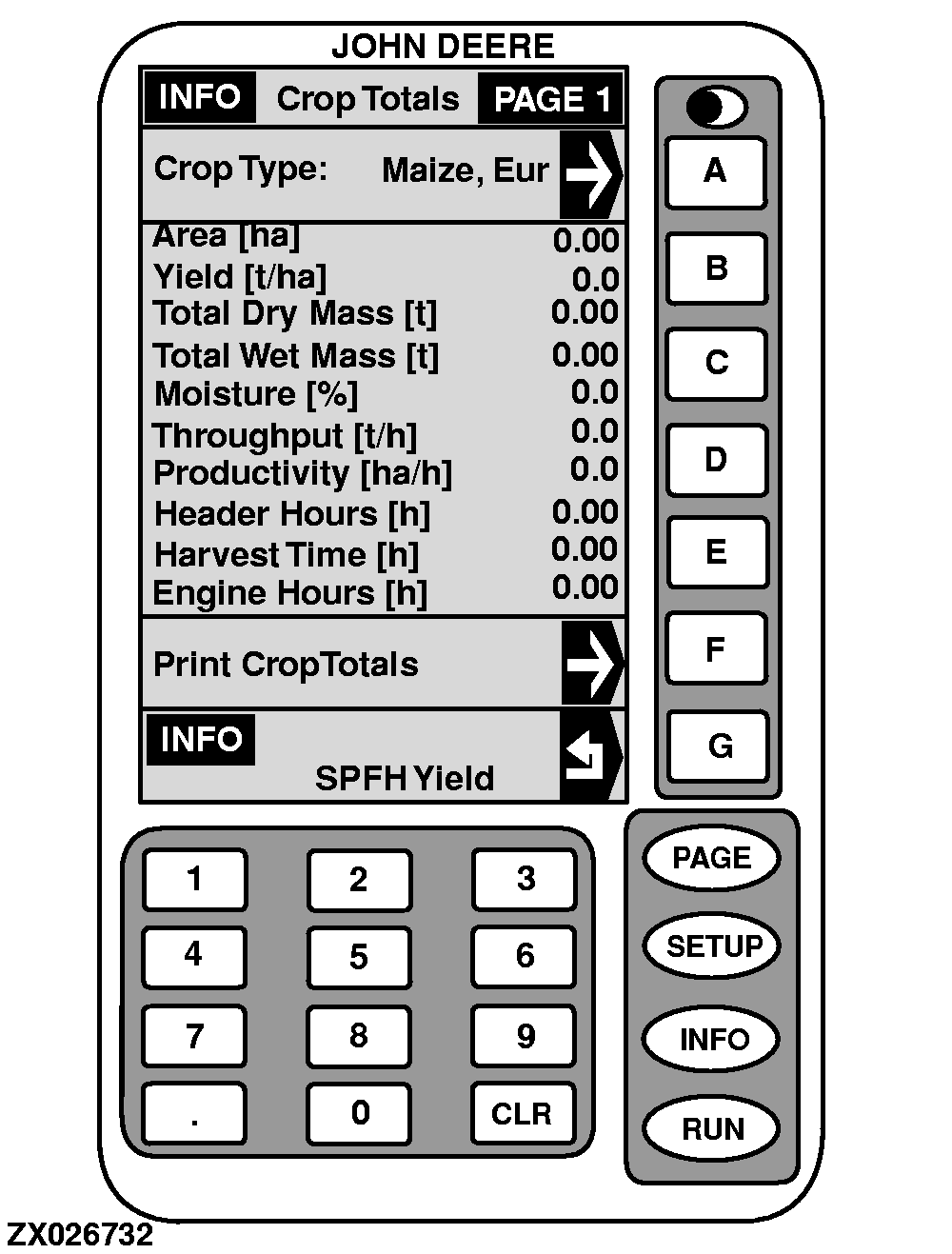

4. Press key G to return to "INFO - SPFH Yield". All information is displayed.

If necessary, a print out of displayed crop totals can be obtained by pressing key F .

NOTE: Once print out is over, successively press on ejection button to sufficiently roll out paper so that it can be torn off far below the printed area.

OUZXMAG,000112C -19-16AUG01-1/2

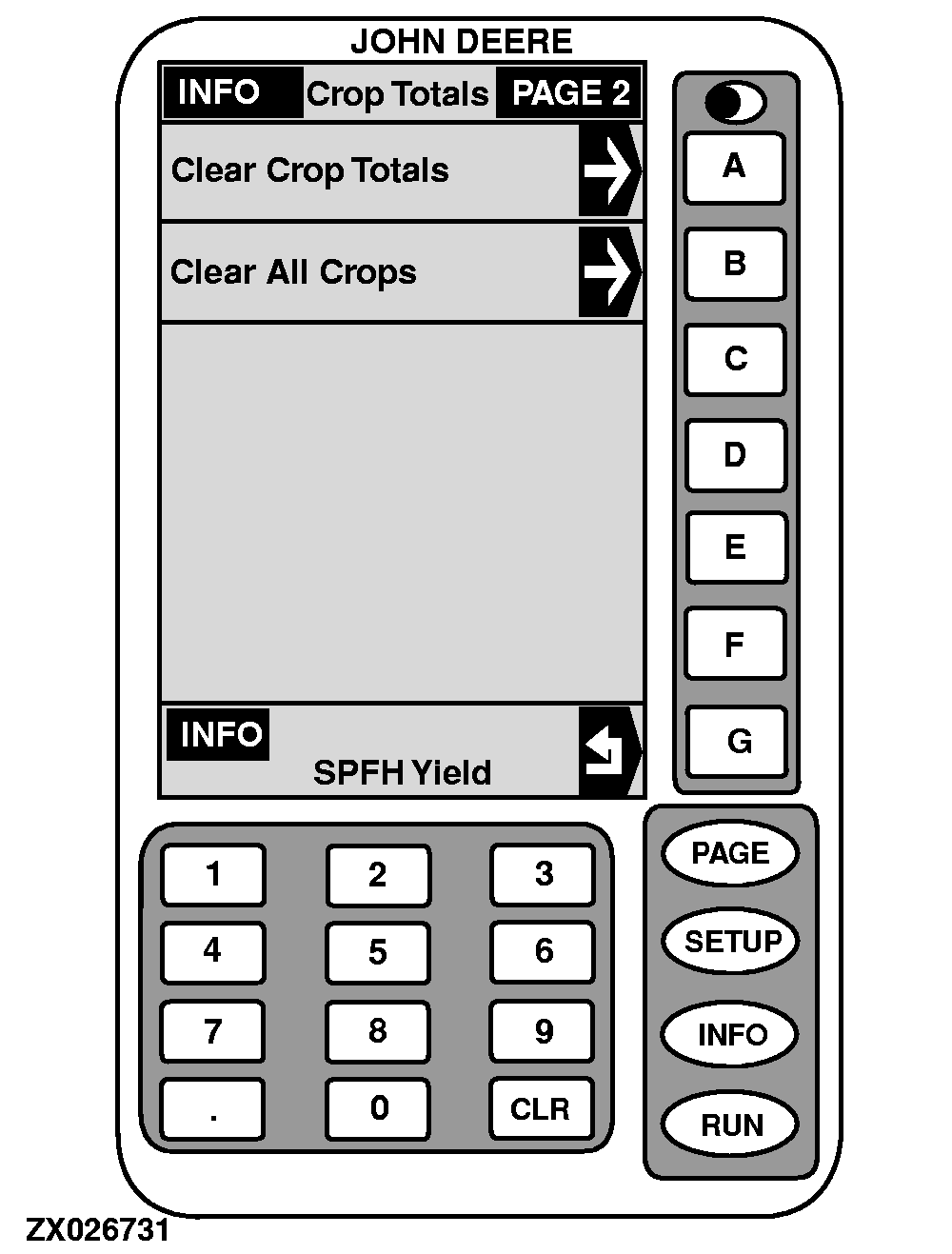

6. Press A to clear relevant crop totals or press B to clear all crop totals.

7. Press key G to go back to "INFO - SPFH Yield" screen.

OUZXMAG,000112C -19-16AUG01-2/2
