Mass-Flow Sensor

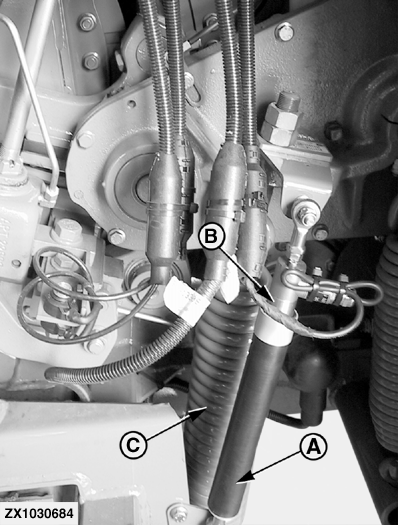

The mass-flow sensor (A) is located on the right-hand side of the cutterhead and connected to the upper front feed roll. The difference in thickness of material that flows between feed rolls will be registered by plunger rod (B). The mass-flow sensor converts the movement of plunger rod into an electronic impulse corresponding to the throughput of the machine.

NOTE: When dismounting and mounting feed roll springs again, make sure that sensor is parallel to the spring (C).

A-Mass-flow sensor
B-Plunger rod
C-Spring

OUZXMAG,0001847 -19-25SEP02-1/1
