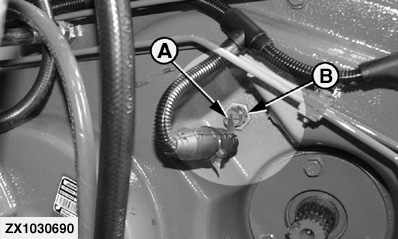

Adjusting Feed Roll Speed SensorWhenever feed roll speed sensor (A) has been replaced or removed, install sensor and adjust its position as follows: With Four-Speed LOC Transmission 1. Fully screw in sensor (A) until it contacts gear teeth.2. Unscrew sensor (A) THREE turns then secure it in position with lock nut (B).

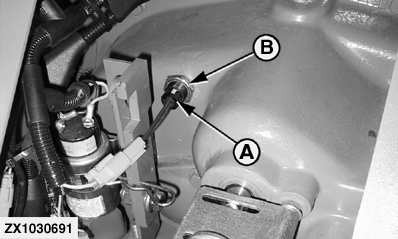

With IV LOC Transmission 1. Fully screw in sensor (A) until it contacts gear teeth.2. Unscrew sensor (A) ONE turn then secure it in position with lock nut (B).
|
|
