Coolant Temperature Gauge

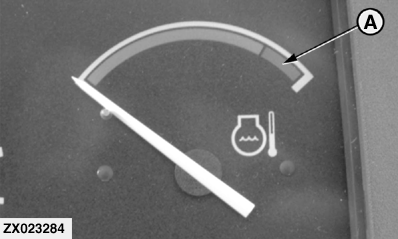

Should the coolant gauge needle move into the red zone (A), the engine is overheating. Immediately reduce load or shift to a lower gear.

Should the needle remain in the red zone, shut off engine and determine cause of overheating (coolant level low, dirty radiator or dirty radiator screen).
