Checking Electrolyte Level of Battery

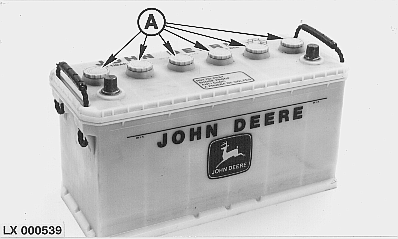

  • Remove filler caps (A). Level of electrolyte should be above the mark. Fill with distilled water only.
  • Check that the vent holes in the battery caps are open at all times. If terminal connectors are corroded, remove corrosion with a stiff bristle brush and then coat the terminals with an acid-free grease.
LX000539

AG,OUZXMAG,598 -19-07JUN00-1/1
