Safely Transporting the Machine

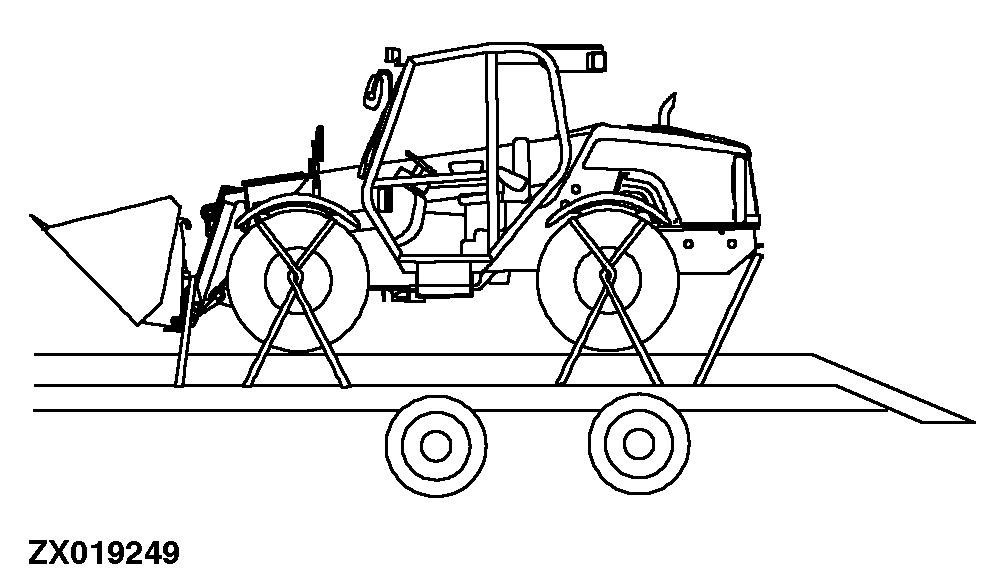

The machine is best transported on a flatbed carrier. Chock the wheels of the machine. Lash the wheels to the transporter and anchor machine by securing it across the forks and through the drawbar.

Towing the machine:

  • Always remove drive shafts before towing the machine.
  • Never tow the machine above 8 km/h (5 mph) as the lack of power assistance makes manual steering very slow and strenuous.
ZX019249

OUZXMAG,0001030 -19-18JUN01-1/1
