Multi-Function Lever

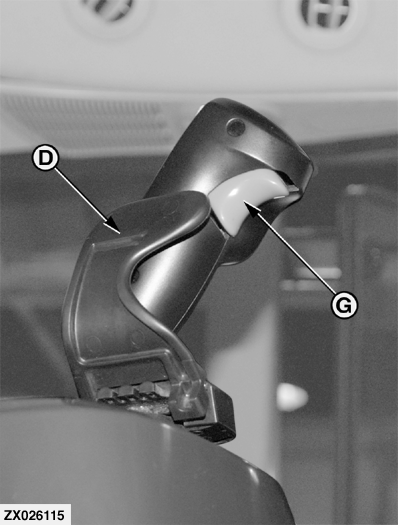

NOTE: Interlock switch actuator (D) prevents accidental actuation of the multi-function lever. The lever can be operated only when the actuator (D) is open (the operator's hand must hold it open).

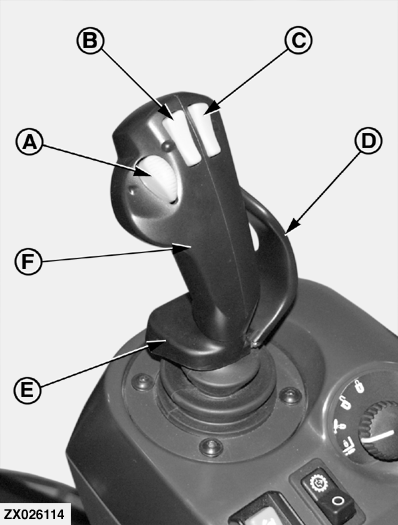

A-Boom extend/retract function switch
B-Boom auxiliary function switch (extend/retract)
C-Boom auxiliary function switch (extend/retract)
D-Interlock switch actuator
E-Hand rest
F-Attachment crowd/dump and boom lift/lower function lever
G-Gear shift switch (PowerShift option)

OUZXMAG,0001040 -19-19JUN01-1/1
