These lights monitor the most important handler functions (road and operating safety, engine).

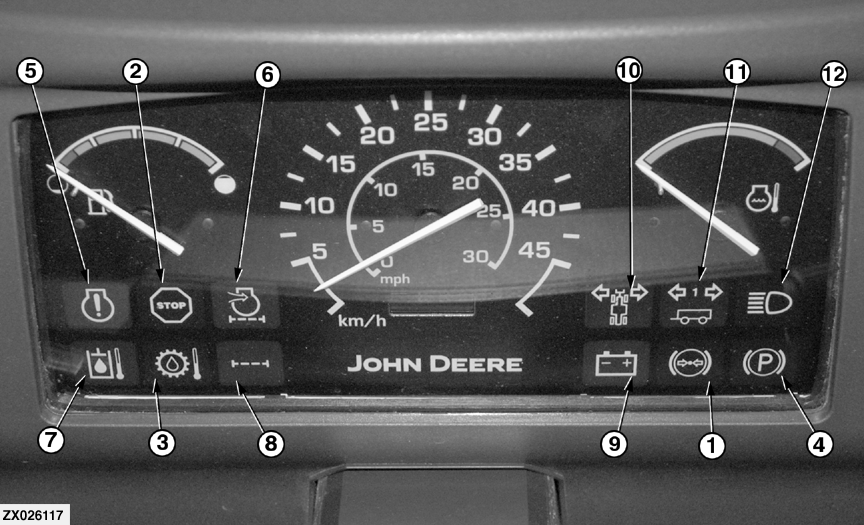

Warning display panel shows red, yellow, blue or green lights for the following conditions:

Priority 1:

Red warning light-Stop engine at once and correct problem.

1-This light indicates that the hydraulic oil pressure in the power braking system has fallen too low. The machine must NOT be operated with this light on, because brake efficiency will be impaired.

2-This light glows when a very serious engine malfunction occurs. Shut off engine immediately! The light may glow briefly when the engine is started, and should go out when engine is running. The engine must NOT be operated with this light on.

3-This light indicates that the transmission oil temperature is too high. Stop machine and select neutral. Run engine at fast idle until light cancels. If light remains on, stop engine and see your John Deere dealer. DO NOT operate machine with this light on.

4-The parking brake indicator light glows when parking brake is applied and engine is running.

Priority 2:

Yellow warning light-Service or correct problem. Stop engine as required.

5-Lights up when an engine malfunction or minor priority occurs. See your John Deere dealer (at the latest at the end of the working day).

6-If air cleaner indicator light glows with engine running, the air cleaner element must be cleaned or replaced.

OUZXMAG,0001042 -19-19JUN01-1/2

7-This light indicates that the hydraulic oil temperature is too high. If light remains on, stop engine and see your John Deere dealer. DO NOT operate machine with this light on.

8-If hydraulic and transmission oil filter indicator light glows with engine running, the filter is clogged.

9-If alternator indicator light glows with engine running, this indicates a defect at alternator. Check alternator cables. If necessary, have alternator checked by your John Deere dealer.

9-This indicator light glows whenever the work lights are switched on.

Priority 3:

Green or blue warning light-Be aware of condition.

10-The turn signal indicator light for the machine starts flashing when the turn-signal or hazard warning lights are switched on.

11-The turn signal indicator light for trailer starts flashing when the turn-signal or hazard warning lights are switched on.

12-The full beam indicator light will glow whenever the headlights are switched on at full beam.

NOTE: Indicator light 9 should glow as soon as the main switch is turned on.

Bulb Test:

When the main switch is turned on and the FNR lever or a gear is engaged, the following lights should glow: 1, 2, 3, 6 and 8. If this is not the case, a defective bulb or blown fuse may be the cause. Check and replace parts as necessary.

The indicator lights should go out as soon as the engine is running.
