Light Switches

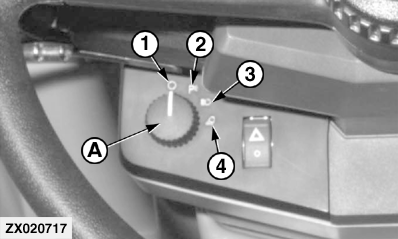

Light switch (A) can be set to the following positions:

1. Light switch in "off" position
2. Parking lights "on"
3. Headlights "on"
4. Work lights "on"

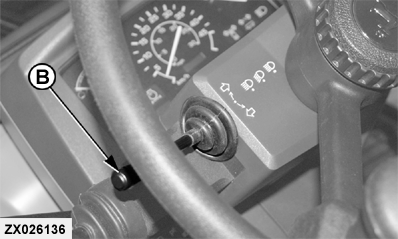

Switch headlights to "full beam" or "lower beam" position by means of switch (B):

• Switch down = Full beam
• Switch in center = Low beam
• Switch up = Headlight flasher

Indicator light (C) will glow when headlight switch is in "full beam" position.

NOTE: The light switch (A) also switches license plate light "on".

OUZXMAG,000104D -19-20JUN01-1/1
