Work Light Switch

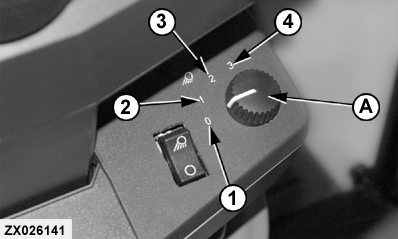

Work lights are switched on and off at the main light switch (position 4). The various positions of switch (A) allow the work lights to be selected as follows:

1. 0=Work light switch in "off" position
2. 1=Front work lights "on"
3. 2=Front and rear work lights "on"
4. 3=Rear work lights "on"

NOTE: Rear work light operates also if FNR lever is in "reverse".

OUZXMAG,0001051 -19-21JUN01-1/1
