Seven-Terminal Trailer Socket

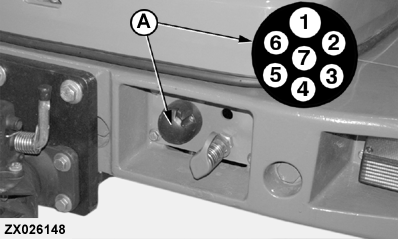

Socket (A) allows lights, turn signals and other electrical equipment on a trailer to be connected.

ZX026148

Connection
 Function
 Wire color
1 L.h. turn signal Dark green
2 - -
3 Ground Black
4 R.h. turn signal Purple
5 R.h. tail light Grey
6 Stop lights Pale blue
7 L.h. tail light Grey



NOTE: Suitable plugs can be obtained from your John Deere dealer
