IMPORTANT:
Always operate the machine with the doors fastened shut or held back by its retainer.

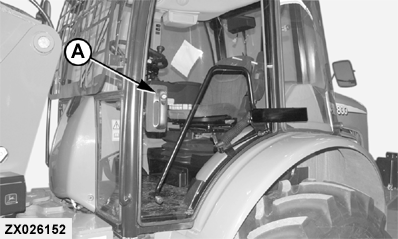

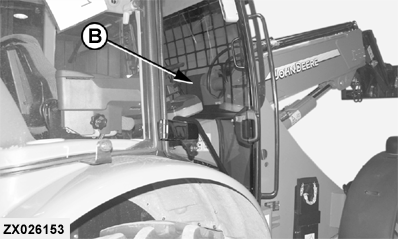

The machine is equipped with two wide opening glass stable doors (A) and (B) for easy access and improved visibility. The left hand door (A) can be held in half open position to improve ventilation.
-

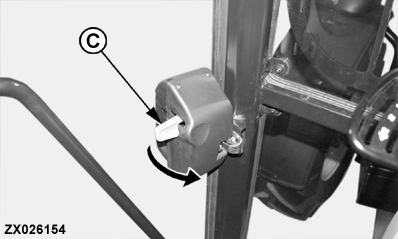

To open the door from inside the cab push handle (C) toward the inside of the cab.
-

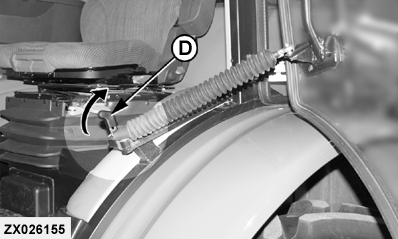

To open the left hand door completely, pull handle (D).
-

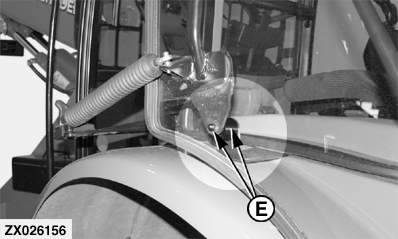

Each door can be held in open position thanks to a lock pin and retainer system (E)
-
To release the door window from its retainer, simply pull the door from its retainer.
A-L.H. side door
B-R.H. side door
C-Door handle
D-L.H. door handle
E-Lock pin and retainer
|
