Super Deluxe Air Suspension Seat

This operator's seat has an air suspension system and a turning device for added operator comfort. The seat has a self-contained electric compressor to adjust the seat suspension to match the operator's height and weight.

IMPORTANT: Before turning the seat, always switch off the engine. This prevents the handler or implements from moving if any of the controls are accidentally moved.

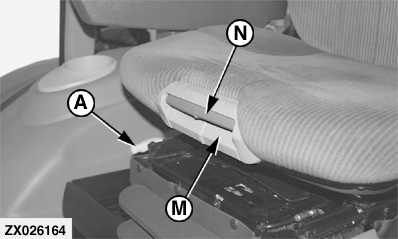

• The forward/rearward handle (A) allows the seat to slide forward or rearward for best working position. Pull up on the handle to allow adjustment then release handle when seat is in desired position.

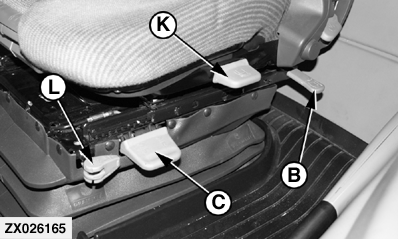

• Attenuator lock-out lever (B) locks out or releases the lateral movement. Push lever to the front to release; push lever to the rear to lock.
• Height and weight adjustments are made with a push/pull lever (C). Pull or push on lever to suit operator height/weight.


  A-Forward/Rearward adjustment handle
  B-Attenuator lock-out lever
  C-Seat height/operator weight adjustment
  D-Lower back support adjustment knob
  E-Seat back support adjustment lever
  F-Seat back
  G-Armrest
  H-Armrest tilt adjustment knob
  J-Armrest attaching knob
  K-Lever for turning device
  L-Attenuator lock-out lever
  M-Seat base tilt adjustment
  N-Seat base horizontal adjustment

OUZXMAG,000105E -19-22JUN01-1/2

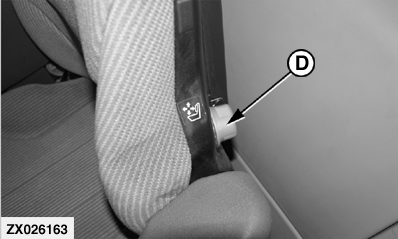

• Turn knob (D) to adjust lower back support (lumbar support).
• Pull on lever (E) to adjust seat back (F) angle. Release lever when seat back is in desired position
• Armrest (G) can be pulled up for better seat access. Turn knob (H) to adjust armrest (G) tilt angle.
• Armrest (G) can be removed from the seat by unlocking knob (J).
• Use lever (K) to turn seat 20° to the left.
• Attenuator lock-out lever (L) locks out or releases the horizontal movement. Rotate lever to the front to release; rotate lever to the rear to lock.
• Seat base position is adjustable by means of lever (M) and (N). Pull lever to adjust.

NOTE: The seat cushion has the presence system.

OUZXMAG,000105E -19-22JUN01-2/2
