Steering Wheel Height/Tilt Adjustment

Steering Wheel Height Adjustment:

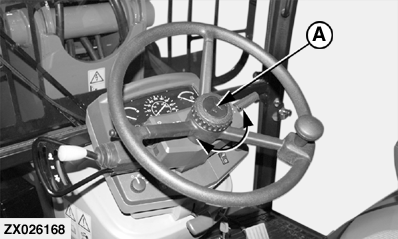

Loosen hub (A). Push or pull wheel to position. Tighten hub to lock.

NOTE: Only a slight tightening of the hub is needed to hold steering wheel in position.

Steering Wheel Tilt Adjustment:

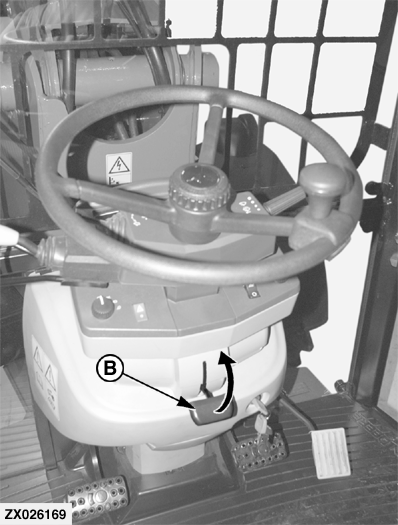

Pull lever (B) upward, move steering wheel to desired angle and release the lever.

NOTE: If only the lever is pulled, the steering wheel will rise to its highest position.

OUZXMAG,0001060 -19-23JUN01-1/1
