Windshield and Cab Roof Wiper and Washer System

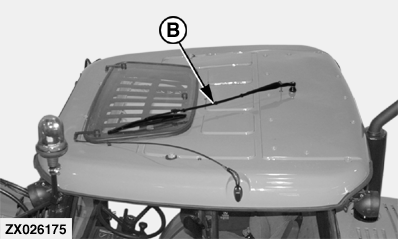

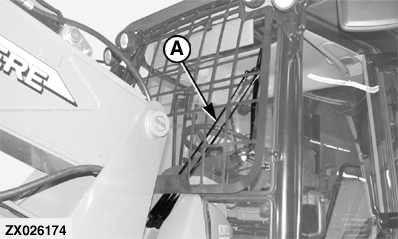

Windshield wiper (A) and roof wiper (B) are operated by means of switch (C) which has three positions:

1. Not used
2. Slow wipe
3. Fast wipe

Push switch (C) towards steering column to operate the windshield washer system.

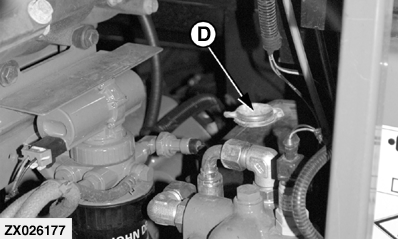

Add a suitable anti-freeze solution to water in reservoir (D) if temperature is liable to drop below freezing point.


A-Windshield wiper
B-Cab roof wiper
C-Switch for windshield and roof wiper
D-Reservoir
1-Not used
2-Slow wipe
3-Fast wipe

ZX026174
ZX026175
ZX026176
ZX026177

OUZXMAG,0001065 -19-23JUN01-1/1
