Heater

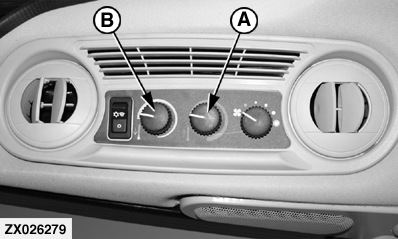

Heating is infinitely variable by means of the two heater switches (A) and (B).

Use switch (A) to increase heating effect.

Use switch (B) to increase cooling effect.

Set blower and louvers to the desired position.

OUZXMAG,0001068 -19-23JUN01-1/1
