Transmission Oil Level

Do not operate the transmission system when oil level is below the low level mark on dipstick. Always check oil level with handler parked on level ground.

1. Start engine and run for a few minutes to prime the system.

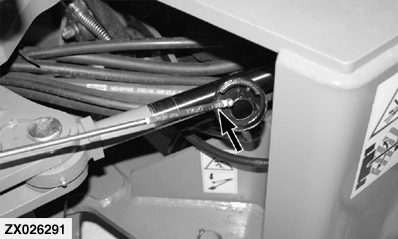

2. With engine stopped, withdraw dipstick and wipe clean. Replace dipstick fully into the tube and withdraw.
3. Oil level must be well above the full mark of the dipstick. Top-up as required with specified oil (see Section "Fuel, Lubricants, Coolant and Capacities").
