Starting the Engine

CAUTION: Never operate the engine in a closed building. Make sure there is plenty of ventilation.

Danger of asphyxiation!

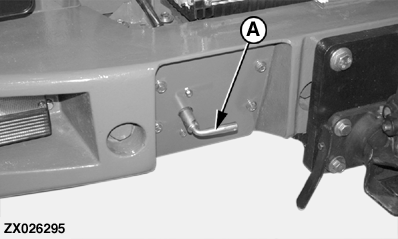

1. Make sure that battery main switch (A) is in ON position, as shown.

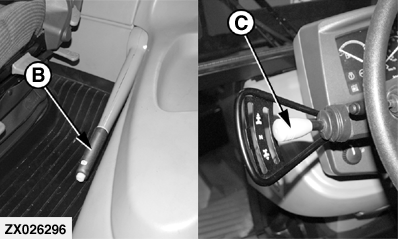

2. Apply parking brake (B).

NOTE: Applying parking brake will automatically set the FNR lever (C) to neutral position.

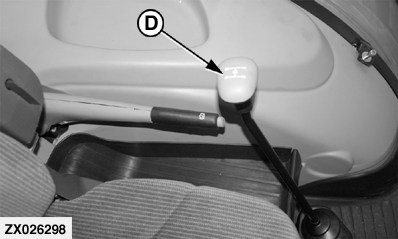

3. On machines with Synchro-Shuttle transmission, set gear shift lever (D) to neutral.

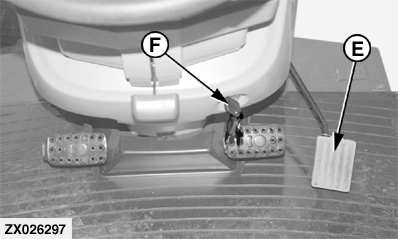

4. Depress the accelerator (E) approximately one third through its travel.

5. Turn key in main switch (F) clockwise to end position. Release key as soon as engine starts. Check that the warning lights go out.

Do not operate starting motor for more than 20 seconds at a time. Turn main switch key to "off" position and wait at least one minute before trying again.

Do not adjust accelerator. The electronic fuel injection pump is set at a higher slow idle (1050 rpm) until coolant temperature reaches 20°C (68°F).

A-Battery main switch
B-Parking brake
C-FNR lever
D-Synchro-Shuttle gear shift lever
E-Accelerator pedal
F-Main switch

OUZXMAG,000107A -19-23JUN01-1/1
