Shifting Transmission (PowerShift)
ZX026124
ZX026123

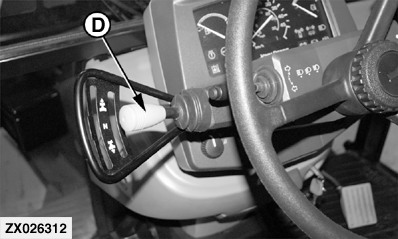

Transmission is controlled by means of FNR lever (D) and gear shift switches (A) or (B). The selected gear is indicated at gear indicator (C).

IMPORTANT: Never operate FNR lever while machine is moving.

Shifting From Neutral

1. Run engine at idle speed.

2. Select gear.

3. Put FNR lever in desired position.

4. Accelerate engine.

Changing Gears
  • Press switch (A) or (B) and select the next higher or lower gear.
Changing Direction of Travel

1. Reduce engine speed.

2. Brake slowly to a stop.

3. Put FNR lever in desired position.

4. Release brake.

5. Accelerate the engine.

ZX026125
ZX026312

OUZXMAG,0001085 -19-24JUN01-1/1
