Forward Stability Indicator Test

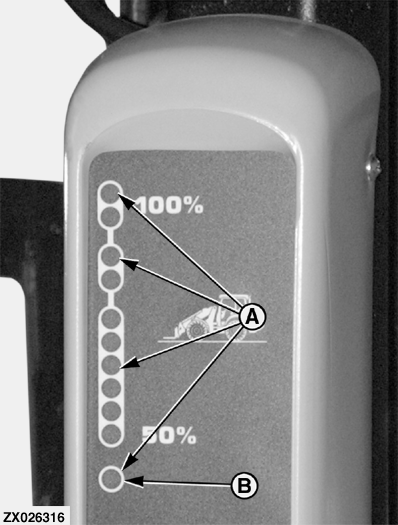

Turn the key in main switch to 'ON' position. All LEDs (A) light and flash for 2-3 seconds and the alarm will sound as the unit performs its internal self check and then the LEDs go out leaving bottom LED (B) illuminated and the alarm off. If LED reactions are as follows, contact your John Deere dealer: |
|
CAUTION:
The forward stability Indicator does not substitute to the operator's vigilance! Always use the indicator as an assistant only and keep in mind that specified lift capacities must not be exceeded, otherwise machine stability is not sufficient. Danger of accidents!
OUZXMAG,000108A -19-24JUN01-1/3 |
|
No LEDs illuminated indicate that the unit is not receiving power or that the internal protection device has operated due to a system fault. LEDs 4 and 5 illuminated and LED 1 flashing quickly indicates that the output from the sensor is out of the load range. LEDs 2, 3, 4, 5, 6 and 7 flashing slowly (once per second) indicates a fault with the internal circuit of the display unit. LED 2 and 11 flashing slowly with LED 1 flashing quickly indicates that the sensor is in-operative or disconnected.
|
|
OUZXMAG,000108A -19-24JUN01-2/3 |
|
Display Unit Test Function

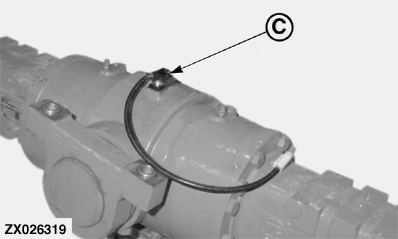

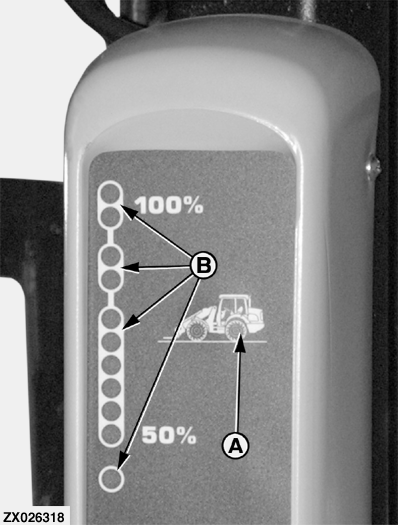

NOTE: The unit test function performs a full functional test of the display by forcing a signal onto the load sensor (C) input as if an excess weight had been picked up. Load sensor (C) is located above rear axle 1 . 1. Turn the key in main switch to 'ON' position. 2. Wait about 5 seconds that system is under normal operation. 3. Press 'TEST' button (A). All LEDs (B) will illuminate and alarm will sound. 4. Release "TEST" button (A) to return to normal operation. The overload indicator must be tested at regular intervals by your John Deere dealer. Any adjustments must be carried out by a qualified technician.
|
|
