Boom Lift Cylinder Safety Channel

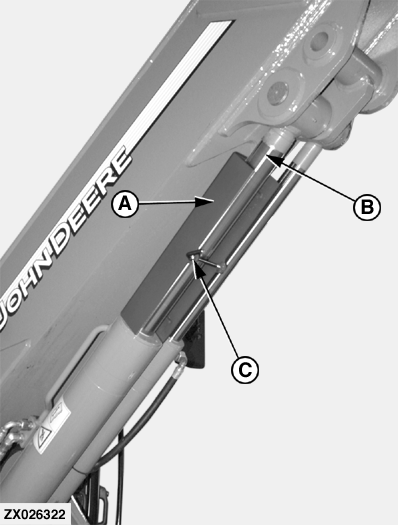

The handler is furnished with a boom safety channel (A) that must be used underneath the boom in raised position each time service is required. Place channel (A) on hydraulic cylinder rod (B) as shown.

Secure channel (A) with latch (C).

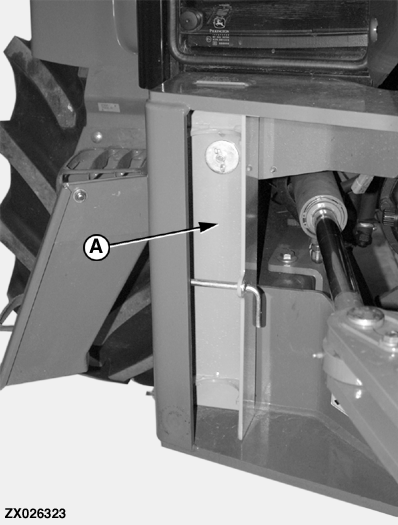

When not used, store channel (A) on its support as shown.

OUZXMAG,000108C -19-24JUN01-1/1
