Operating the Boom
ZX026326

causym CAUTION: Always consult the load monitor before and during boom operation.

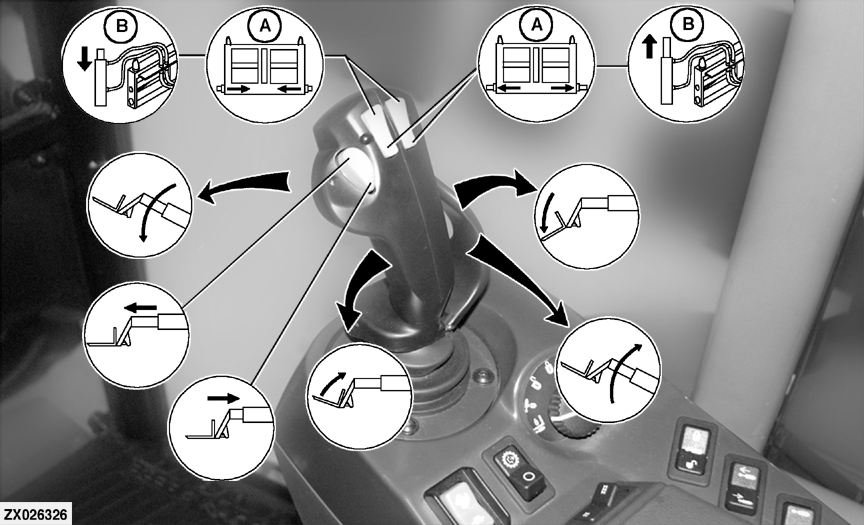

The boom and attachment carrier are controlled by the Multi-function lever and switches.

Refer to illustration above for the Multi-function lever and switch operation.


A-Carrier lock pin actuation
B-Attachment hydraulic function

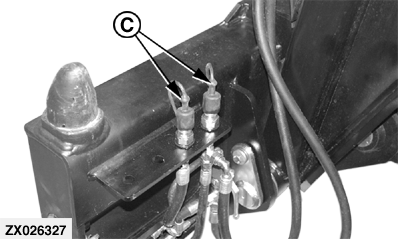

C-Hydraulic connectors
D-Diverter valve lever

    ZX026327

OUZXMAG,000108D -19-24JUN01-1/2

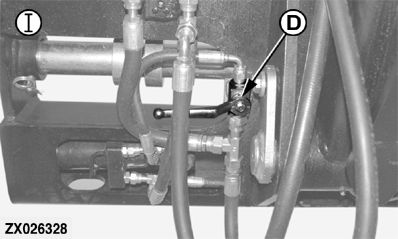

  • To operate the attachment hydraulic functions (B), connect hydraulic hoses to connectors (C) then place diverter valve lever (D) in position (I).

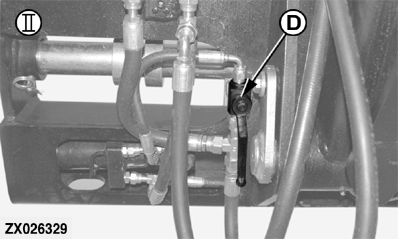

  • To operate the carrier locking pin (A), place diverter valve lever (D) in position (II).

NOTE: Refer to "Operating Attachments" Section for front equipment attaching/detaching procedures.

ZX026328
ZX026329

OUZXMAG,000108D -19-24JUN01-2/2
