Attaching/Detaching Equipment (John Deere Carrier)

Proceed as follows to attach attachment on John Deere carrier:

1. Ensure locking pins (A) are fully retracted. If necessary, place diverter valve lever (B) as shown and press lower part of switch (D) on Multi-function lever to retract locking pins (A).

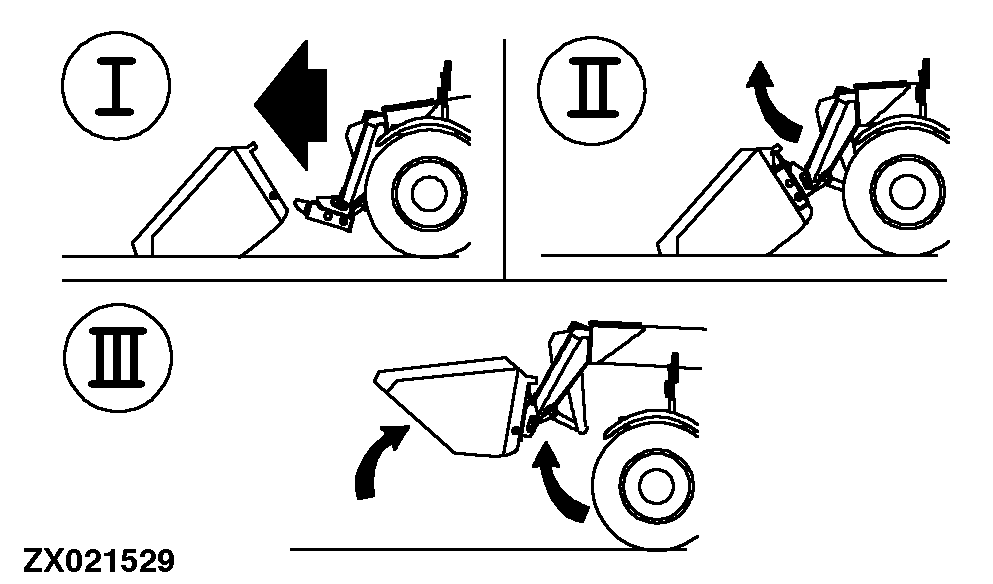

2. Extend the boom approximately 1 m (3 ft.), tilt the carrier slightly forward and drive up to the attachment (I).

3. Drive the machine forward, until the pick-up cones pass under the rings on the attachment (II) then lift the boom until the attachment is clear of the ground.

4. Tilt the carrier backwards (III) and engage the locking pins by operating the upper part of switch (C).

CAUTION: Always check locking pins before tilting or operating any attachment.

5. Raise and tilt back the attachment to the travelling position. Move the boom lockout switch (E) to the position (F). The machine is now ready for work.

To detach attachment from carrier, proceed in reverse order.

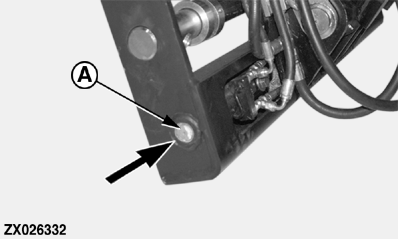

A-Locking pins

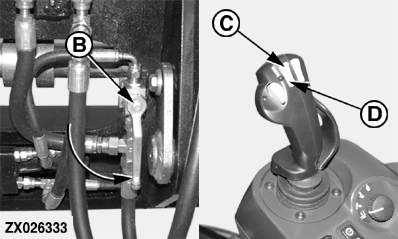

B-Diverter valve lever
C-Locking pin retract switch
D-Locking pin extend switch

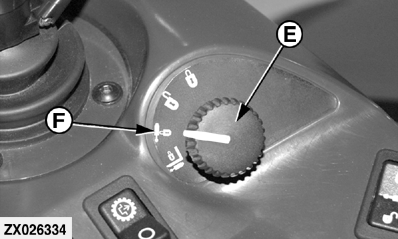

E-Lockout switch
