Attachment Auxiliary Functions

Install attachment as described under 'Attaching/Detaching Equipment to Carrier' in this Section.

causym CAUTION: Always check locking pins before tilting or operating any attachment.

The position of lever (A) decides whether the hydraulic pin-locking system is operated or the attachment hydraulic functions. Place lever (A) as shown to operate hydraulic functions of attachment.

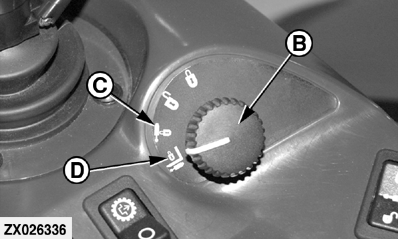

If necessary and depending on lever (A) position , place lockout switch (B) to position (C) to prevent accidental use of pin-locking system or to position (D) to lock all attachment hydraulic functions.


A-Lever
B-Lockout switch
C-Locking pins locked
D-Attachment functions locked
