Connecting Attachment Hoses

Proceed as follows:

CAUTION: The hydraulic system has a maximum stand-by pressure of 22500 kPa (225 bar; 3263 psi) . For your own protection and to ensure proper functioning of the system, use only genuine John Deere parts.

1. Lower attachment to the ground, stop engine and apply parking brake.

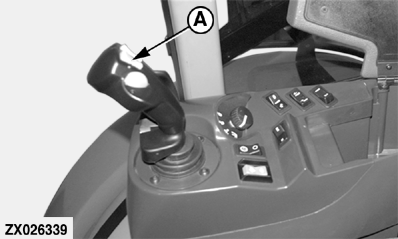

2. To relieve hydraulic pressure from the lines, switch ignition on (without starting) and press auxiliary buttons (A) on the Multi-function lever.

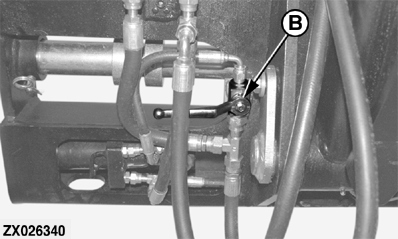

3. Operate lever (B) to transfer the hydraulic circuit to quick-couplers (C).

4. Connect hoses to couplers. Raise attachment from the ground and check that the attachment operates correctly.

OUZXMAG,0001092 -19-25JUN01-1/1
