OMZ93152: 3800 Telescopic Handler, Block File: OUZXMAG_0001093_19

The handler can be equipped with front auxiliary hydraulic circuits.

Use switches as follows:

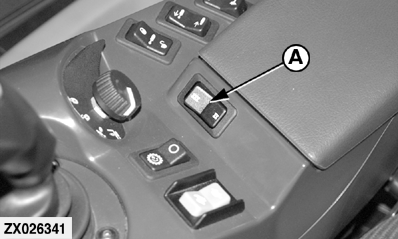

1. Press part (II) of switch (A) to to select second hydraulic function or part (III) of switch (A) for third function.

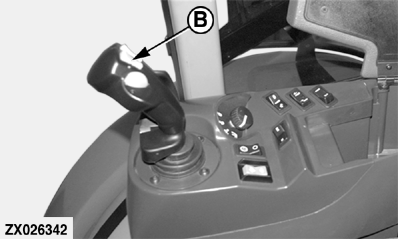

2. Press top of switch (B) to retract hydraulic cylinder and bottom of switch (B) to extend.

OUZXMAG,0001093 -19-25JUN01-1/1
