Tip a Trailer

Proceed as follows:

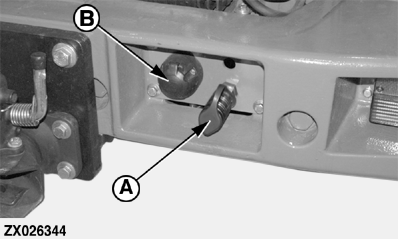

1. Connect trailer hose to the machine's quick coupler (A). Connect trailer electrics to electrical socket (B).

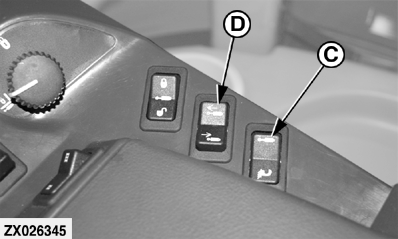

2. Press top of switch (C) to select rear auxiliary hydraulic function at coupler (A).

3. Press switch (D) to tip trailer.

A-Quick coupler
B-Electrical socket
C-Select switch
D-Switch

OUZXMAG,0001097 -19-25JUN01-1/1
