Every 10 Hours-Checking Transmission Oil Level

IMPORTANT: Machine must be parked on level ground with parking brake applied.

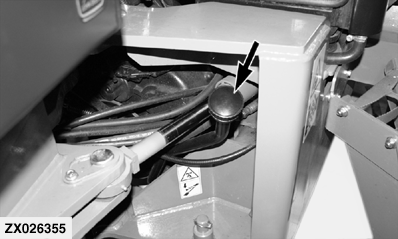

Before starting the engine, make sure there is sufficient oil in the transmission housing (oil level between the two marks on dipstick).

Always practice extreme cleanliness when servicing hydraulic components.

1. Start engine and run for a few minutes to prime the system.

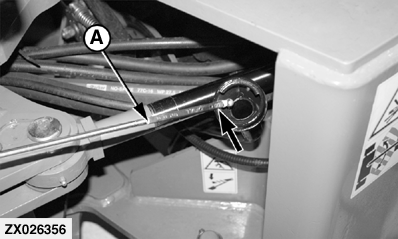

2. With engine stopped, withdraw dipstick (A) and wipe clean. Replace dipstick fully into the tube and withdraw.
3. Oil level must be well above the full mark of the dipstick. Top-up as required with specified oil (see Section "Fuel, Lubricants, Coolant and Capacities").

OUZXMAG,00010A5 -19-25JUN01-1/1
