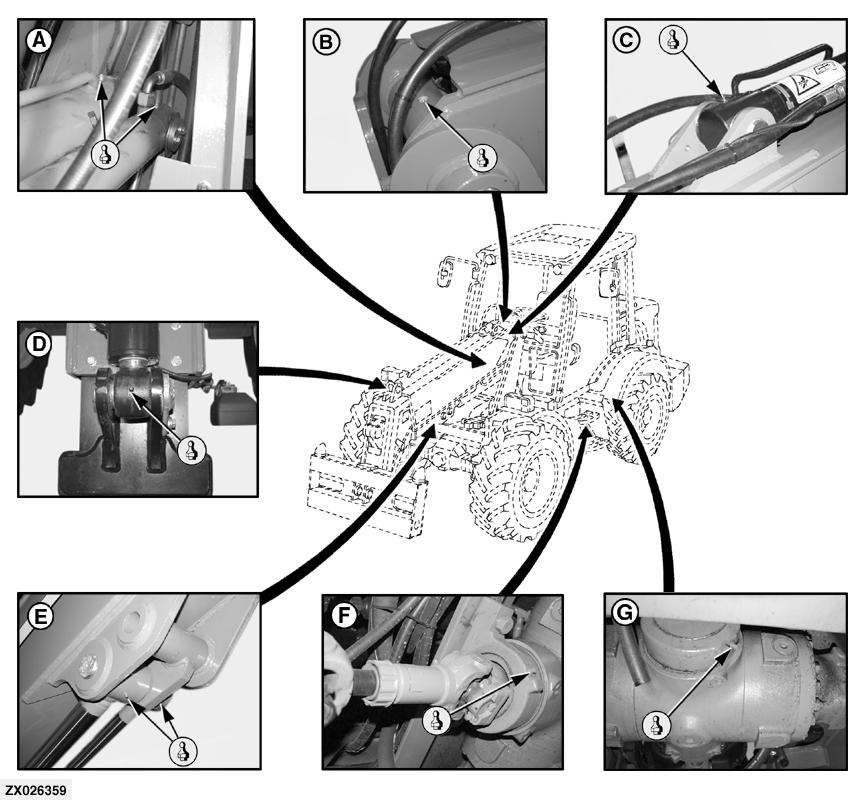

A-Boom lift/Compensating cylinder (bottom - 2x)
B-Boom pivot (2x)

C-Boom extend cylinder (bottom - 1x)
D-Boom extend cylinder (top - 1x)

E-Boom lift/Compensating cylinder (top - 2x)

F-Rear axle pivots (2x)

CAUTION: Secure boom with lift cylinder safety channel prior to lubricating grease points with boom raised.

Lubricate grease points of boom pivot, lift and compensating cylinders, rear axle pivots (10 points).

OUZXMAG,00010A9 -19-26JUN01-1/2

Use specified grease (see Section "Fuel, Lubricants, Coolant and Capacities").

OUZXMAG,00010A9 -19-26JUN01-2/2
