Checking Oil Level in Axles
IMPORTANT:
Check oil level after machine has been stationary for 2 minutes. Clean area around the level plugs before removing.
Checking Axle Differential Oil Level:
-

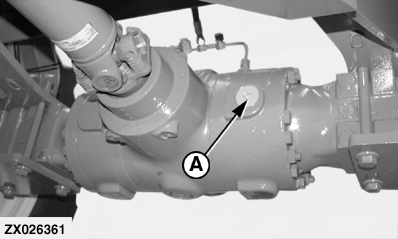

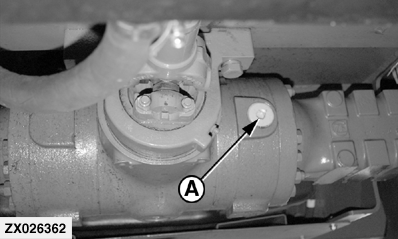

Remove level plug (A).
-
Oil should be level with plug bore. If necessary top up at fill plug (C) with specified oil (see Section "Fuel, Lubricants, Coolant and Capacities").
-
Re-fit plugs (A) and (C) then tighten to 180 N·m (132 lb-ft)
Checking Axle Final Drive Oil Level:
-
Check each hub individually.
-

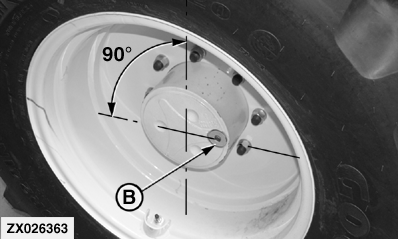

Turn hub until plug (B) is in 3 or 9 o'clock position, as shown.
-
Remove plug. Oil should be level with plug bore. If necessary top up with specified oil (see Section "Fuel, Lubricants, Coolant and Capacities").
-
Re-fit plug (B) and tighten to 180 N·m (132 lb-ft)
|
|
