Every 50 Hours-Grease Fittings (Continued)

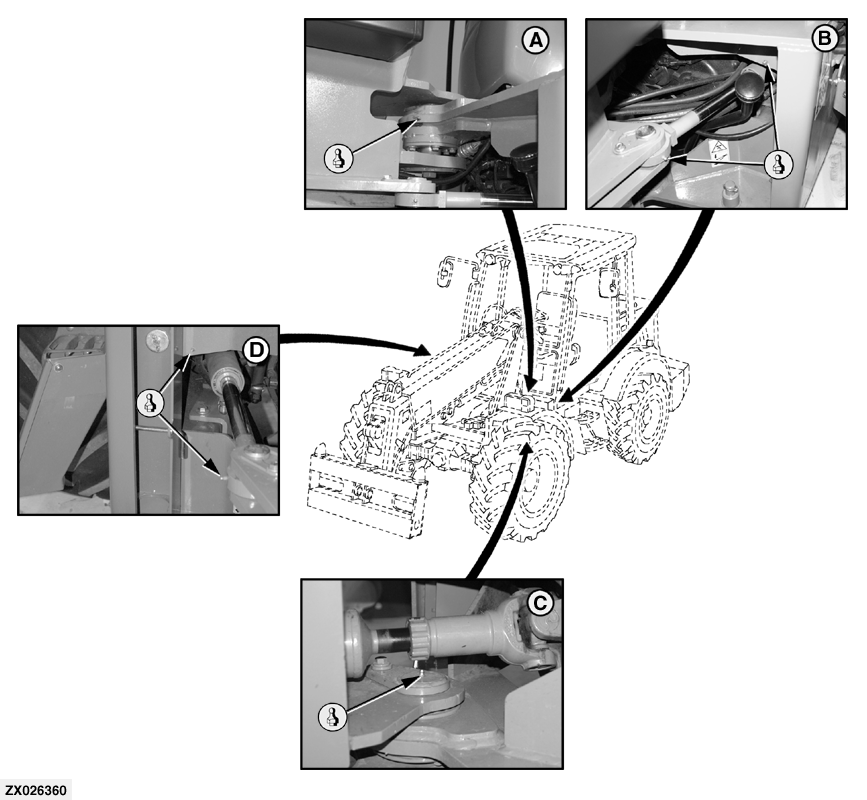

ZX026360


A-Pivoting frame pivot (top - 1x)


B-Pivoting frame pivot cylinder (R.H. - 2x)


C-Pivoting frame pivot (bottom - 1x)


D-Pivoting frame pivot cylinder (L.H. - 2x)

causym CAUTION: Secure pivoting frame with lift cylinder safety rod prior to lubricating grease points.

Lubricate grease points of pivoting frame (6 points).

Use specified grease (see Section "Fuel, Lubricants, Coolant and Capacities").

OUZXMAG,00010AB -19-26JUN01-1/1
