Checking Parking Brake and Lubricating Linkage

Check function of the parking brake and adjust, if necessary (see "Adjusting Parking Brake" in Section "Service/As Required").

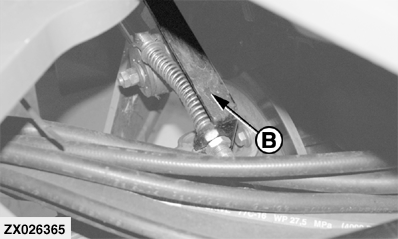

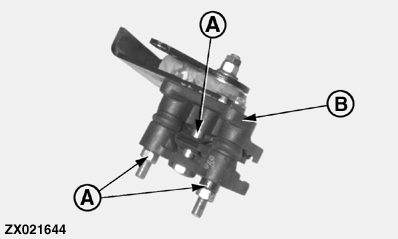

IMPORTANT: Parking brake pivot (A) lubrication requires the caliper (B) to be removed. Therefore it is advised to contact your John Deere dealer to carry out this service.

Clean pivots (A) and apply grease to them.

OUZXMAG,00010AC -19-26JUN01-1/1
