Changing Fuel Filter

1. Unfasten filter retaining ring (A) and remove filter, sealing the old filter with the cover of the new filter.

2. Remove water trap (B) and attach it to the new filter.

3. Install new filter, ensuring that the marks on the filter and housing are properly aligned.

4. Tighten retaining ring (A) until it can be heard to engage.

The bleed is automatically performed by a small orifice (C) inside the filter base connected to the overflow valve (D) on injection pump. This system allows air to escape continually through the fuel return line (E) when ignition is ON.

1. Turn key in main switch to the right as far as the first switch position so that the fuel transfer pump is operating.

2. Allow 40 seconds for electronic transfer pump to complete priming.

3. If additional system bleeding is required, bleed the circuit by loosening fuel line connections at injection nozzles (see "Bleeding The Fuel System".)

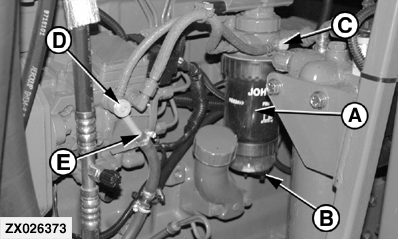

A-Filter retaining ring
B-Water trap
C-Bleed orifice in filter base
D-Overflow valve
E-Fuel return line

OUZXMAG,00010B3 -19-26JUN01-1/1
