Servicing Fuel Tank

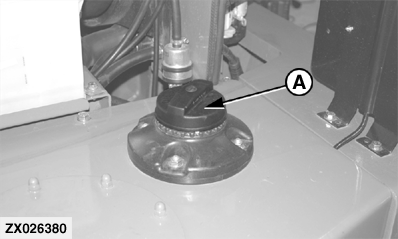

Open tank filler cap (A).

NOTE: The tank can be equipped with a lockable filler cap (A).

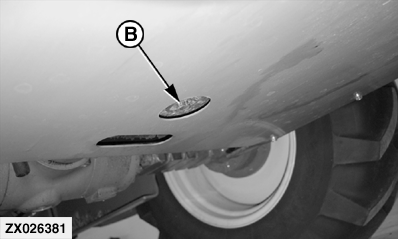

Slacken off drain screw (B) by one turn. Drain water and contaminants. Re-insert drain screw and tighten by hand.

OUZXMAG,00010B4 -19-27JUN01-1/1
