Replacing Transmission Oil Filter

causym CAUTION: Make the machine safe before working on it. Park on level ground, fully lower the boom, apply the parking brake, put the transmission in neutral and stop engine.

Replace filter as follows:

1. Clean the outside of the filter housing.

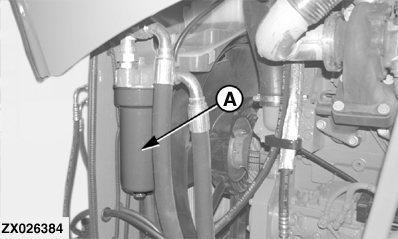

2. Using a spanner unscrew the bowl (A) and discard old element and head-to-bowl seal ring.

3. Clean the inside of the bowl and filter head, install new element and seal ring.

4. Refit bowl and tighten to a torque of 10 N·m (7.5 lb-ft).
