Greasing Boom Extension Wear Pads

Fully extend boom, lower to ground, apply parking brake and stop engine.

Clean areas 1 and ensure that they are dry. Brush/apply grease evenly over the slide running surfaces. Retract the boom.

ZX026386

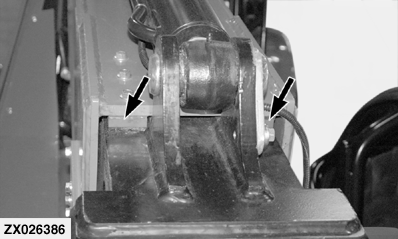

1Upper wear pads area shown.

OUZXMAG,00010BA -19-27JUN01-1/1
